VOLTAGE: 115 or 230 VAC
SCREW TYPE: Ball screw or trapezoid
STANDARD STROKE: 100 to 600 mm
SPEED: 14.2to 28.5 mm/s
TEMPERATURE RANGE: -20ºC to 65ºC
ENVIRONMENT RATING: IP66S protection
Fully rated at 500 lbs to handle dynamic loads both in compression and tension
Up to 1.5 in/sec at rated load
3.9 in , 5.9 in, 11.8 in, 17.7 in, and 23.6 in
Safety clutch aids in the prevention of damage due to accidental overload conditions
CMLA A Series 500 lb Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Capacitor Model | Motor | Max. Dynamic Load | Max. Static Load | Screw | Gear | Motor Power | Amperage | Lifting Speed | Duty Cycle | Capacitor Rating |
| # | Type | (lbs) N | (lbs) N | Type | Ratio | Volts | Amps | (in/s) mm/s | (in/hr) m/hr | mdf |
| SK6405-7-13 | AC | (500) 2200 | (750) 3336 | Trapezoid | 11.5 | 115 | 2.3 | (0.71) 18.0 | (810) 20.6 | 35 |
| SK6405-7-10 | AC | (500) 2200 | (750) 3336 | Trapezoid | 11.5 | 230 | 1.4 | (0.71) 18.0 | (810) 20.6 | 10 |
| SK6405-7-13 | AC | (500) 2200 | (750) 3336 | Ball | 6.5 | 115 | 2.4 | (1.5) 38.1 | (1200) 30.5 | 35 |
| SK6405-7-10 | AC | (500) 2200 | (750) 3336 | Ball | 6.5 | 230 | 1.5 | (1.5) 38.1 | (1200) 30.5 | 10 |
| Notes: 1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated. 2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load) |
||||||||||

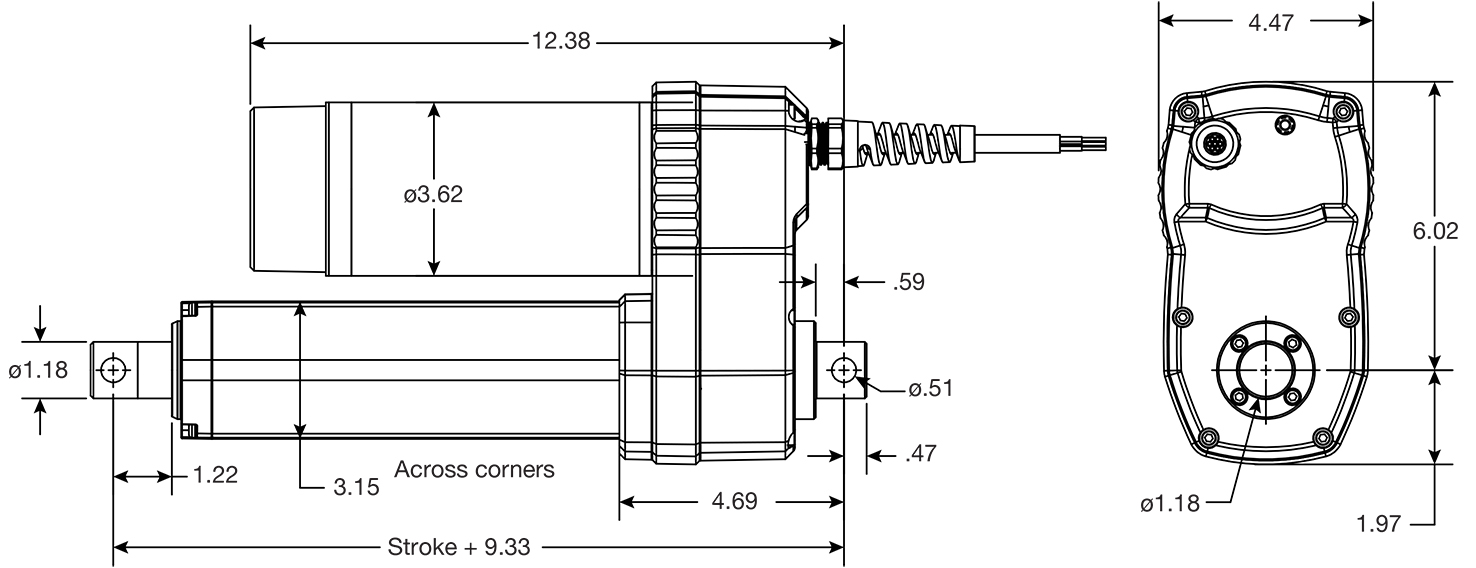

CMLA A Series 500 lb Dimensions |
|---|
