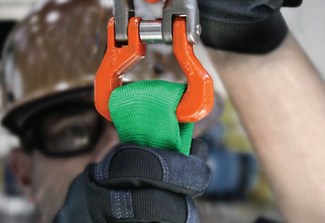

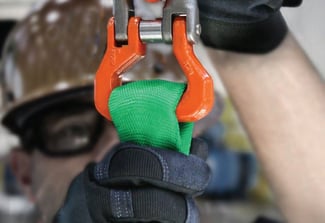

Weblok Assembly

CM Rigging Rigging Hardware Weblok Assembly Image
CM Rigging Rigging Hardware Weblok Assembly Image
When working with synthetic slings, CM Weblok assemblies allow for quick, easy and safe sling attachment. CM Webloks are available in two designs. Synthetic-to-attachment Webloks combine our industry-leading CM Hammerlok® coupling link with a CM synthetic sling attachment. Synthetic-to-synthetic Webloks feature two synthetic sling attachments.CM Webloks are available with either single or double load pin retention, depending on your application.
Buy Now

Features and Benefits

Quick, Easy, Safe.

For use with round slings, web slings and high-performance synthetics. Simply connect a sling to the synthetic sling attachment of the Weblok and a master link or other rigging attachment to the Hammerlok portion to efficiently and safely lift your load. For synthetic-to-synthetic Webloks, simply attach a sling to both ends.

Weblok Assembly

MADE OF DURABLE FORGED ALLOY STEEL

Forged rigging products are better than cast rigging products. When compared, forged parts feature greater ductility, better fatigue life, higher tensile strength and have a finer grain structure. This combination of enhanced features allows for lighter, better performing products with a lower risk of internal defects.

DURABLE ORANGE POWDER COATED FINISH

Synthetic sling attachment portions of the CM Weblok feature the widely recognized CM orange powder coated finish, providing an extra-smooth surface for synthetic attachments.

MEETS ASTM A952 & WSTDA-RS1 STANDARDS

Buy with confidence knowing your product is safe to operate and meets industry-recognized overhead lifting standards.

INDUSTRY-LEADING SAFETY

Available with either single or double retention. Webloks with double retention feature a load pin retention system that incorporates a bolt head and lock nut to prevent the load pin from backing out during extreme use - delivering the highest level of safety on the market. For less severe applications, single-retention Webloks use the same retention system as CM's legendary Hammerlok.

ADDITIONAL INFORMATION

5:1 Design Factor
100% Proof Testing
Made in the USA
