Unified Four Trolley Carriage

Unified Four Trolley Carriage Photo
Unified Four Trolley Carriage Photo
The Unified 4TC Carriage Series are perfect for high torque offset loads and heavy lifting. All 4TC carriages adapt to both UT1 Series Lifters and UA1 Series Articulating Arms. Available in multiple off-the-shelf standard sizes and highly customizable to your specific application.
Unified Four Trolley Carriage Brochure Unified Four Trolley Carriage Brochure - Spanish

Features and Benefits

CAPACITIES

Direct Load Capacities up to 2,000 lbs Offset Load Capacities up to 4,100 ft-lbs

SPECIFICATIONS

•Durable powder-coat finish. •Welded Steel construction. •Upgradeable configurations for future changes.

STANDARD OPTIONS

•Fixed - No Rotate. •Rotate - Bearing with 360 Degree Rotate. •Swivel - Rotor with Adjustable Position Stops. •Brake - Rotor with Caliper Brake.

Options

Ordering Information

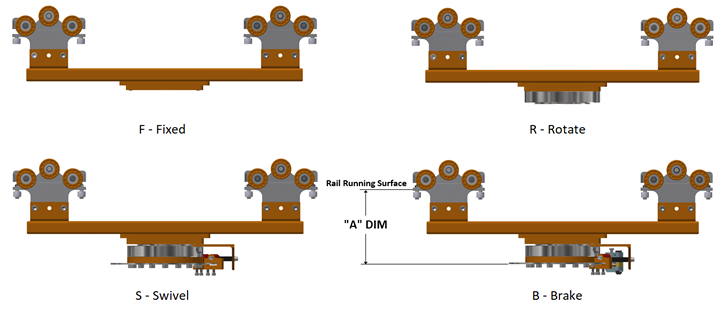

  "A" DIM (in.)
Model # F - Fixed R - Rotate S - Swivel B - Brake
4TC-45-xxxx-MD/HD 6.42 8.39 9.80 9.80
4TC-08-xxxx-MD/HD 8.31 10.27 11.69 11.69

4TX-xx-xxxx-MD-x Series

Load Capacity Moment Capacity (FT-LB)
(LBS) 45-2424 45-3030 08-2424 08-3030
250 850 975 2050 2600
500 500 525 1850 2260
750 50 50 1500 1800
1000 0 0 1150 1375
1250 N/A N/A N/A 925
1500 N/A N/A N/A 490
1750 N/A N/A N/A 75
2000 N/A N/A N/A 0

4TC-xx-xxxx-HD-x Series

Load Capacity Moment Capacity (FT-LB)
(LBS) 45-2424 45-3030 45-3636 08-2424 08-3030 08-3636
250 850 975 1100 2050 2600 3000
500 500 525 550 1850 2260 2600
750 50 50 100 1500 1800 2100
1000 0 0 0 1150 1375 1550
1250 N/A N/A N/A N/A 925 1050
1500 N/A N/A N/A N/A 490 525
1750 N/A N/A N/A N/A 75 50
2000 N/A N/A N/A N/A 0 0
