The Unified 2TC Carriage Series are perfect for vertical loads and offset loads parallel to the bridge or monorail that require medium duty lifting. All 2TC carriages adapt to UT1 Series Lifters and available in multiple off-the-shelf standard sizes and highly customizable to your specific application.

Features and Benefits

CAPACITIES

Direct Load Capacities up to 500 lbs

SPECIFICATIONS

•Durable powder-coat finish. •Welded Steel construction. •Upgradeable configurations for future changes

Options

Ordering Information


F - Fixed No Rotate

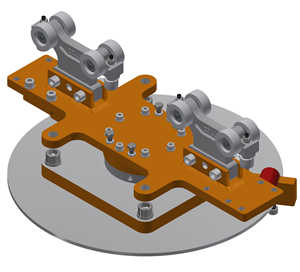

S - Stop Rotor with Adjustable Position Stops

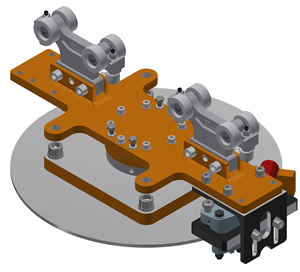

B - Rotor with Caliper Brake

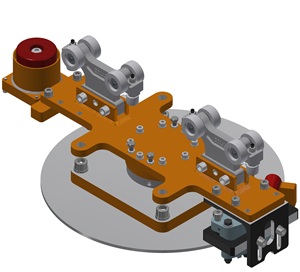

BR - Rotor with Caliper Brake and Rail Brake


For loads over 500lbs, consult the factory. Not for offset loads perpendicular to the bridge or monorail

Max Torque

45-400 = 300 FT-LB
08-400 = 650 FT-LB

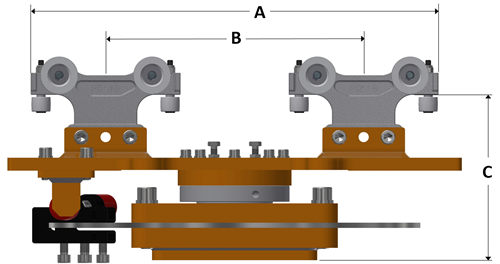

Model # A - DIM B - DIM C - DIM
2TC-45-400-F 19.75 12.5 5.24
2TC-45-400-B, BR, S 19.75 12.5 8.04
2TC-08-400-F 26.88 15.5 7.11
2TC-08-400-B, BR, S 26.88 15.5 9.91

All 2TC models compatible with all Unified UT1 Lifters

Load Capacity Moment Capacity
(LBS) 45-400 08-400
100 500 625
200 450 675
300 400 725
400 350 775
500 300 825
