LT Series Industrial Linear Actuator
LT Series Industrial Linear Actuator

LT Series - 27 to 225 lbs

LT Series Industrial Linear Actuator
LT Series Industrial Linear Actuator

VOLTAGE: 12 VDC or 115 VAC
STANDARD STROKE: 4 to 24 in. (101 to 609 mm)
SPEED: 0.15 to 0.26 in./s (3.8 to 6.6 mm/s)

Buy Now
LT Dimensional Drawing - 27 lb. LT Dimensional Drawing - 169 lb. LT Dimensional Drawing - 225 lb. Duff-Norton Linear Actuator Design Guide LT Series Product Sheet LT Series OandM Manual LT Series Specs and Part Numbers Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES & BENEFITS

LT Series - 27 to 225 lb Linear Actuators

Safety

Internal limit switches safely stop operation at fully retracted and fully extended positions

Strength

Improved strength from zinc die cast housing

Corrosion Resistance

Aluminum outer tube

Rotation Prevention

No restraining torque required due to keyed translating tube

Smooth Operation

Polished aluminum translating tube

Environmental Protection

IP66 protection enables operation in rugged outdoor environments

Options

OPTIONS:

  • Control LT Actuators’ motion through wired or wireless handsets
  • Sync multiple actuators using an AC controller
  • Choose from multiple add on features including: low speed motor, stainless steel translating tube, overload clutch, additional limit switches and feedback sensors
  • Positioning feedback via potentiometer
  • Design custom configurations with our application engineering team

Specifications

LT Series Product Information
Part Number Rated Loads (lbs) N Stroke Length Retracted Length Voltage Current Draw** Lifting Speed** Duty Cycle**
in mm In mm VDC Amp (12 VDC) 24 VDC in/s mm/s
LT25-*-50 (27) 120 2 50 6.1 155 12 or 24 (2.5) 1.5 1.3 33 20%
LT25-*-100 (27) 120 4 100 8 205 12 or 24 (2.5) 1.5 1.3 33 20%
LT25-*-150 (27) 120 5.9 150 10 255 12 or 24 (2.5) 1.5 1.3 33 20%
LT25-*-200 (27) 120 7.9 200 12 307 12 or 24 (2.5) 1.5 1.3 33 20%
LT25-*-250 (27) 120 9.8 250 14 357 12 or 24 (2.5) 1.5 1.3 33 20%
LT25-*-300 (27) 120 11.8 300 16 407 12 or 24 (2.5) 1.5 1.3 33 20%
LT50-*-50 (54) 240 2 50 6.1 155 12 or 24 (3.5) 2.0 0.9 23 20%
LT50-*-100 (54) 240 4 100 8 205 12 or 24 (3.5) 2.0 0.9 23 20%
LT50-*-150 (54) 240 5.9 150 10 255 12 or 24 (3.5) 2.0 0.9 23 20%
LT50-*-200 (54) 240 7.9 200 12 307 12 or 24 (3.5) 2.0 0.9 23 20%
LT50-*-250 (54) 240 9.8 250 14 357 12 or 24 (3.5) 2.0 0.9 23 20%
LT50-*-350 (54) 240 11.8 300 16 407 12 or 24 (3.5) 2.0 0.9 23 20%
LT100-*-50 (112) 500 2 50 6.1 155 12 or 24 (3.5) 2.0 0.5 12 20%
LT100-*-100 (112) 500 4 100 8 205 12 or 24 (3.5) 2.0 0.5 12 20%
LT100-*-150 (112) 500 5.9 150 10 255 12 or 24 (3.5) 2.0 0.5 12 20%
LT100-*-200 (112) 500 7.9 200 12 307 12 or 24 (3.5) 2.0 0.5 12 20%
LT100-*-250 (112) 500 9.8 250 14 357 12 or 24 (3.5) 2.0 0.5 12 20%
LT100-*-350 (112) 500 11.8 300 16 407 12 or 24 (3.5) 2.0 0.5 12 20%
LT150-*-50 (169) 750 2 50 6.1 155 12 or 24 (3.5) 2.0 0.3 8 20%
LT150-*-100 (169) 750 4 100 8 205 12 or 24 (3.5) 2.0 0.3 8 20%
LT150-*-150 (169) 750 5.9 150 10 255 12 or 24 (3.5) 2.0 0.3 8 20%
LT150-*-200 (169) 750 7.9 200 12 307 12 or 24 (3.5) 2.0 0.3 8 20%
LT150-*-250 (169) 750 9.8 250 14 357 12 or 24 (3.5) 2.0 0.3 8 20%
LT150-*-350 (169) 750 11.8 300 16 407 12 or 24 (3.5) 2.0 0.3 8 20%
LT225-*-50 (169) 750 2 50 6.1 155 12 or 24 (3.5) 2.0 0.2 6 20%
LT225-*-100 (169) 750 4 100 8 205 12 or 24 (3.5) 2.0 0.2 6 20%
LT225-*-150 (169) 750 5.9 150 10 255 12 or 24 (3.5) 2.0 0.2 6 20%
LT225-*-200 (169) 750 7.9 200 12 307 12 or 24 (3.5) 2.0 0.2 6 20%
LT225-*-250 (169) 750 9.8 250 14 357 12 or 24 (3.5) 2.0 0.2 6 20%
LT225-*-350 (169) 750 11.8 300 16 407 12 or 24 (3.5) 2.0 0.2 6 20%

*Voltage: 1=12 VDC and 2=24 VDC
** At rated load

Models

LT Series Dimensions

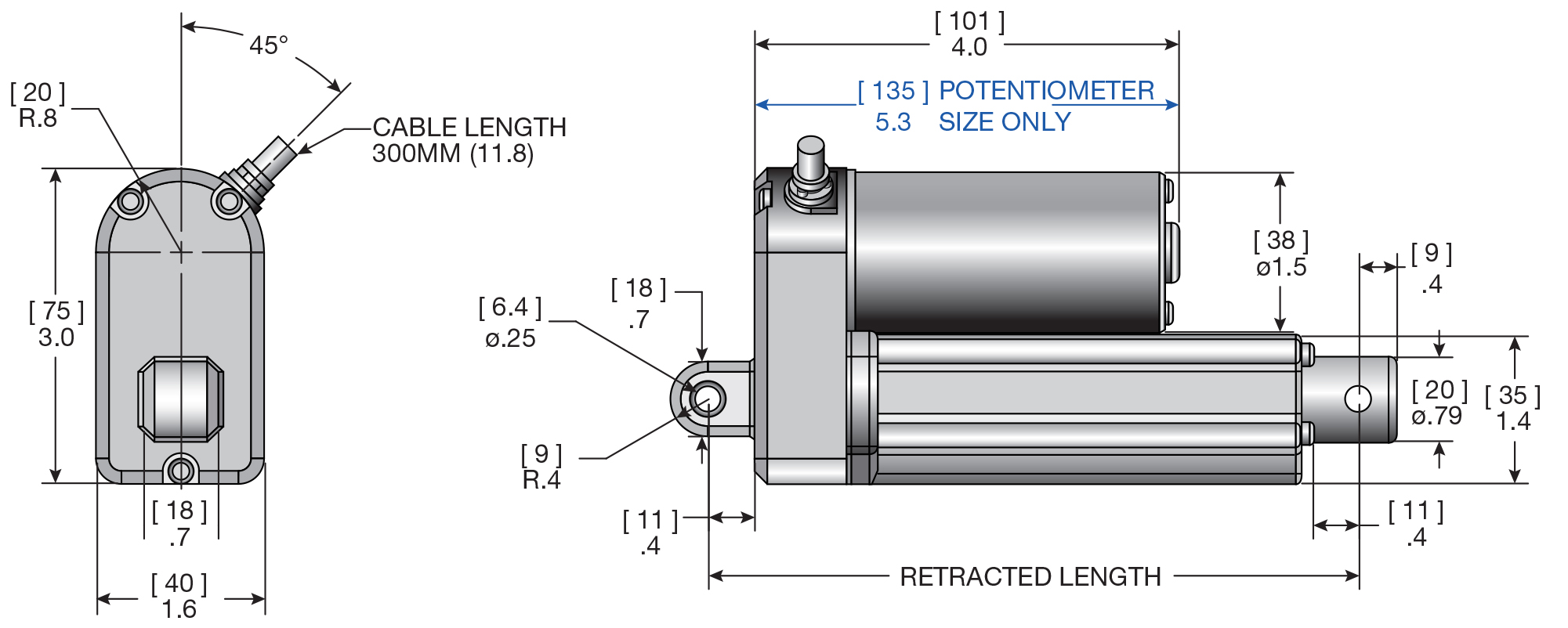

LT Series Dimensional Drawing

Linear Actuator System Controls
TC1 Control Box LTEC Features and benefits




  • IP66 protection for outdoor applications
  • Actuators with self-locking ACME screw
  • Easy assembly with plug-and-play technology
  • Temperature range: -13ºF (-25ºC) to 150ºF (65ºC
  • LED for power supply indication on the controller
  • Electronic Overload Protection (controller)

Synchronized Linear Actuator systems
The Duff-Norton linear actuator system will allow you to synchronize two linear actuators and control up to another two linear actuators independently. A Duff-Norton linear actuator system includes linear actuators, a controller and a hand set for operation. System applications can include agricultural machinery, industrial automation and outdoor power equipment.
Two Synchronized Two Synchronized - One Independent Two Synchronized - Two Independent
Part No. TH1-121-2016S Part No. TH1-321-2016S Part No. TH1-421-2016S
Two Synchronized actuator controls Two Synchronized - One Independent actuator controls Two Synchronized - Two Independent actuator controls
Model Number Description Feature Feature Other
See LT models Actuator 24 VDC models only Hall Sensor models only (add H suffix to part number) any capacity or stroke length
TC1-2241-1221 Controller 120 VAC power in - 82" cord 24 VDC power out 1 per system
NA Actuator Extension Cable 40" NA NA NA
See image above Handset partial coiled wire extends to approx. 7 foot length 1 per system

Please do not exceed 10% of 2 minutes continuous use duty cycle with these systems. Exceeding these rates might result in a temporary suspension of service. The system should operate again after a brief cooling period. For synchronized operation please select the Hall Sensor models only. Models with no feedback, or the potentiometer may be used for independent operation, and will require the LTEC kit.

Linear Actuators Controlled Independently
The Duff-Norton linear actuator system will allow you to control up to four linear actuators independently. A Duff-Norton linear actuator system includes linear actuators, a controller and a hand set for operation. System applications can include agricultural machinery, industrial automation and outdoor power equipment.
One Independent Two Independent Three Independent Four Independent
Part No. TH1-121-2016 Part No. TH1-221-2016 Part No. TH1-321-2016 Part No. TH1-421-2016
One Independent actuator control Two Independent actuator controls Three Independent actuator controls Four Independent actuator controls

Click here to download a PDF with larger images.
Model Number Description Feature Feature Other
See LT models Actuator 24 VDC models only non-feedback models only any capacity or stroke length
TC1-2241-1221 Controller 120 VAC power in - 82" cord 24 VDC power out 1 per system
LTEC Actuator Extension Cable 40" approx length 2 prong terminal and 6 pin round connector ends 1 per actuator
See image above Handset partial coiled wire extends to approx. 7 foot length 1 per system

Please do not exceed 10% of 2 minutes continuous use duty cycle with these systems. Exceeding these rates might result in a temporary suspension of service. The system should operate again after a brief cooling period. For synchronized operation please select the Hall Sensor models only. Models with no feedback, or the potentiometer may be used for independent operation, and will require the LTEC kit.
