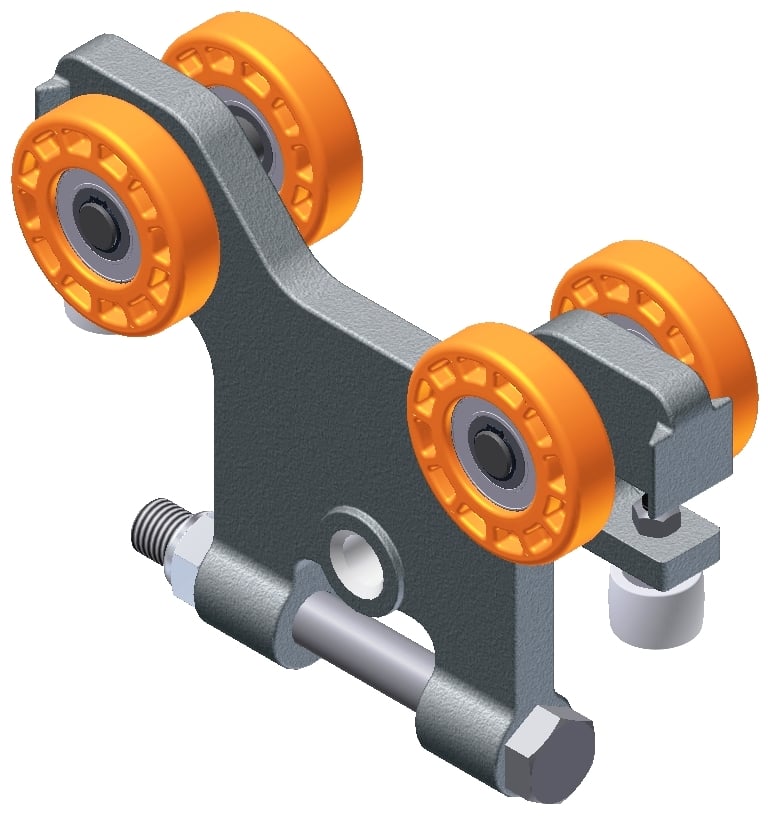

Part # 20019

Trolley Features

High tensile almag alloy frame
3.2" glass filled nylon wheels, with permanently sealed precision ball bearings
High impact nylon guide rollers with ual race ball bearings for smooth, quiet operation
Operates within enclosed rail free from obstructing material
Dielectrically insulated
Low inertia less than 1% of load
Operating temperature range: +32 degrees to +212 degrees F

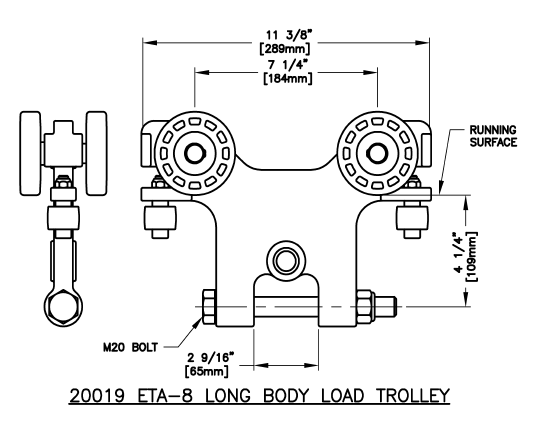

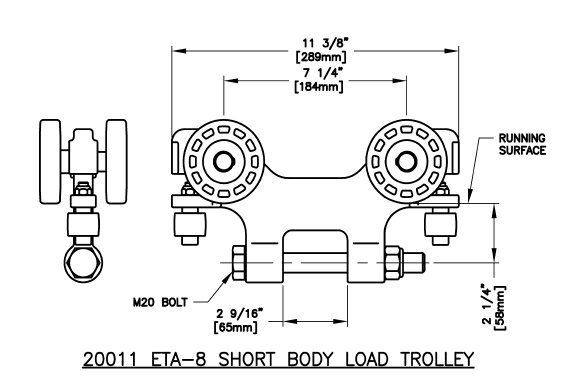

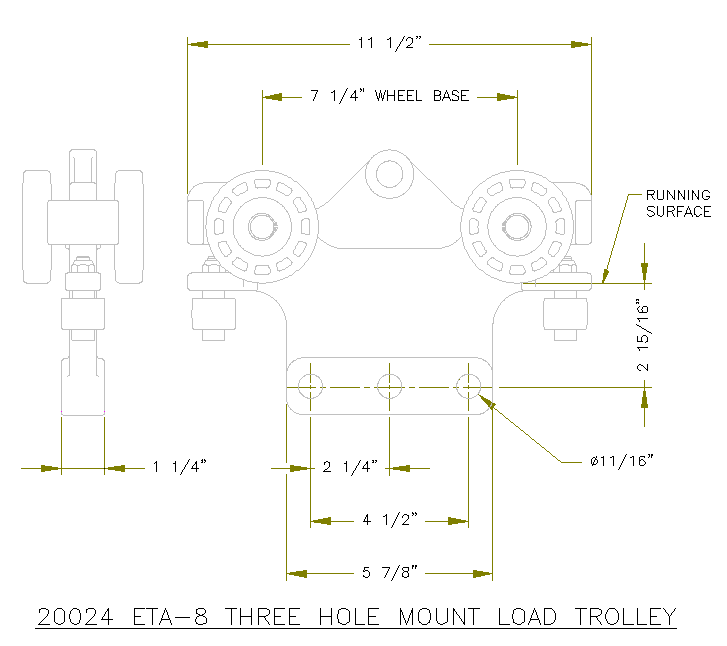

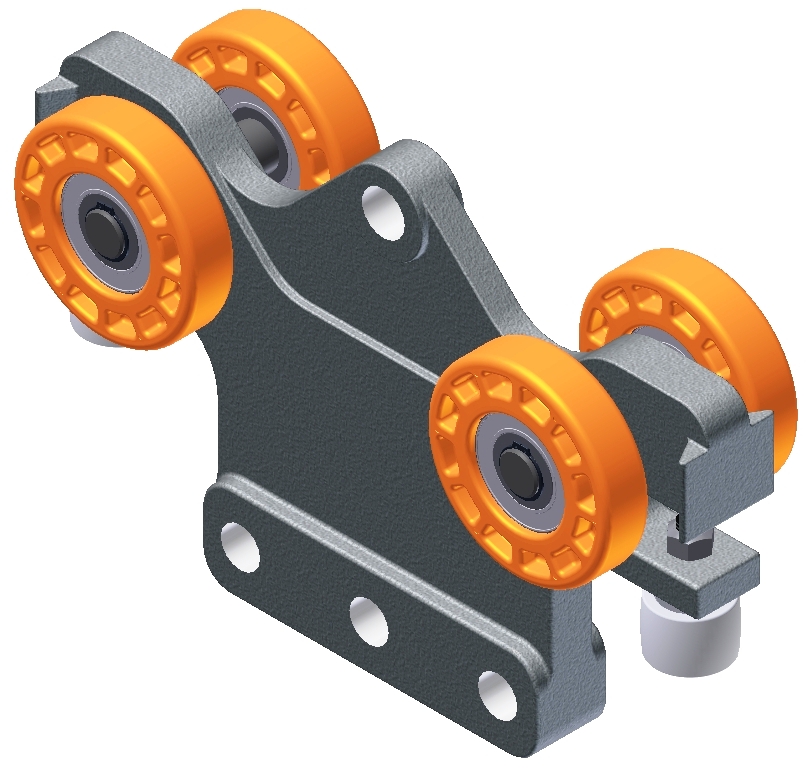

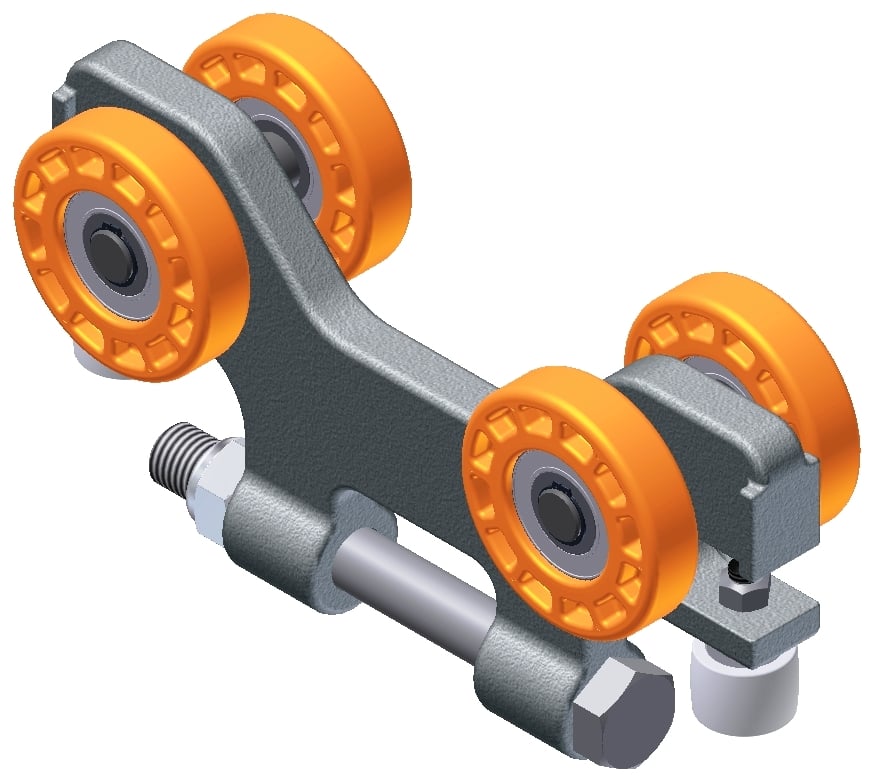

Part # 20011 Short Body 1,100lb/550kg Dimensions Exploded View	Part # 20019 Long Body 1,100lb/500kg Dimensions Exploded View	Part # 20024 3 Hole Mount 1,100lb/550kg Dimensions Exploded View

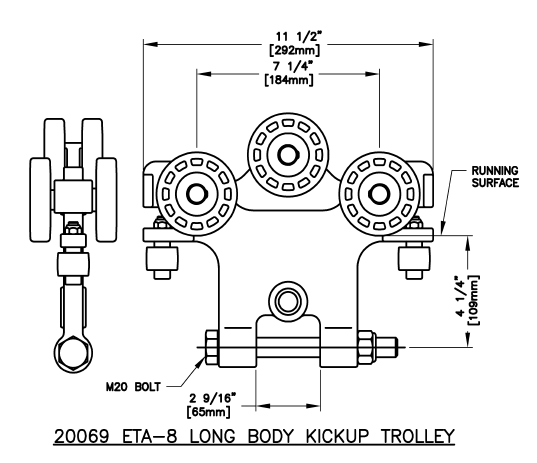

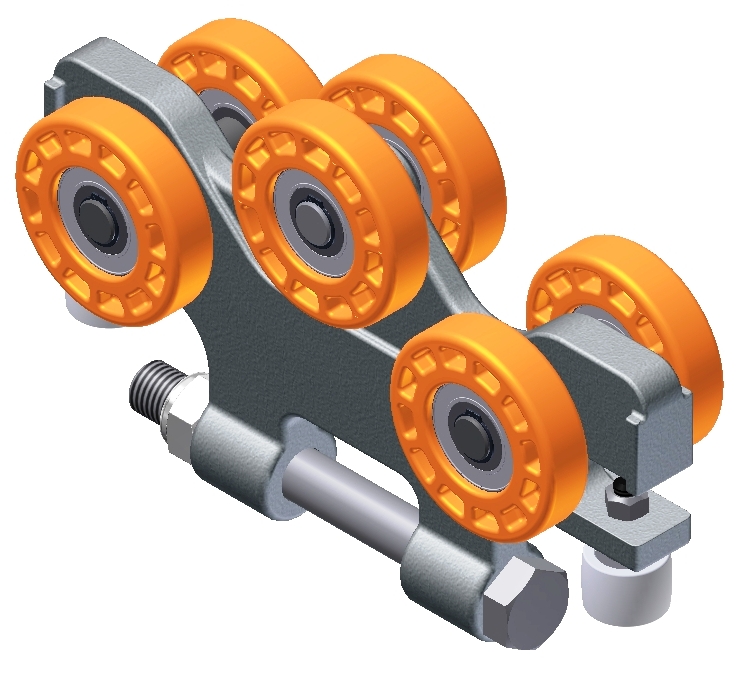

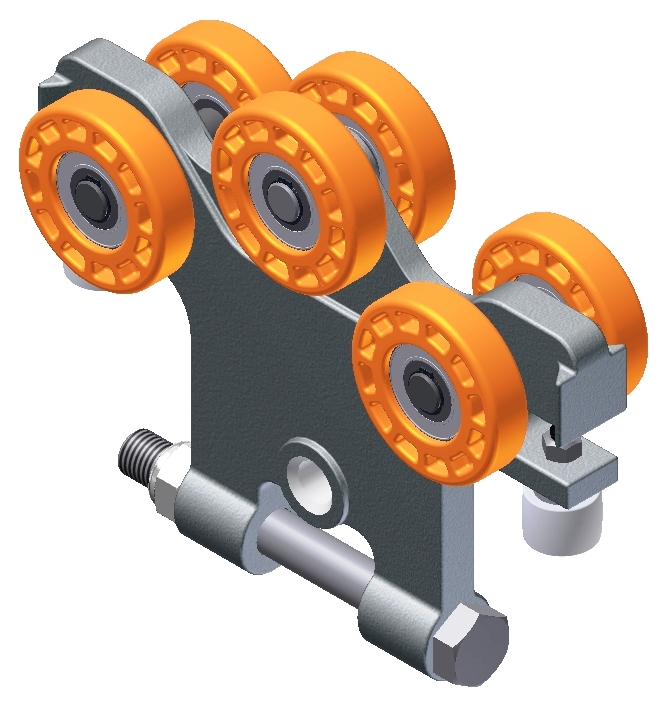

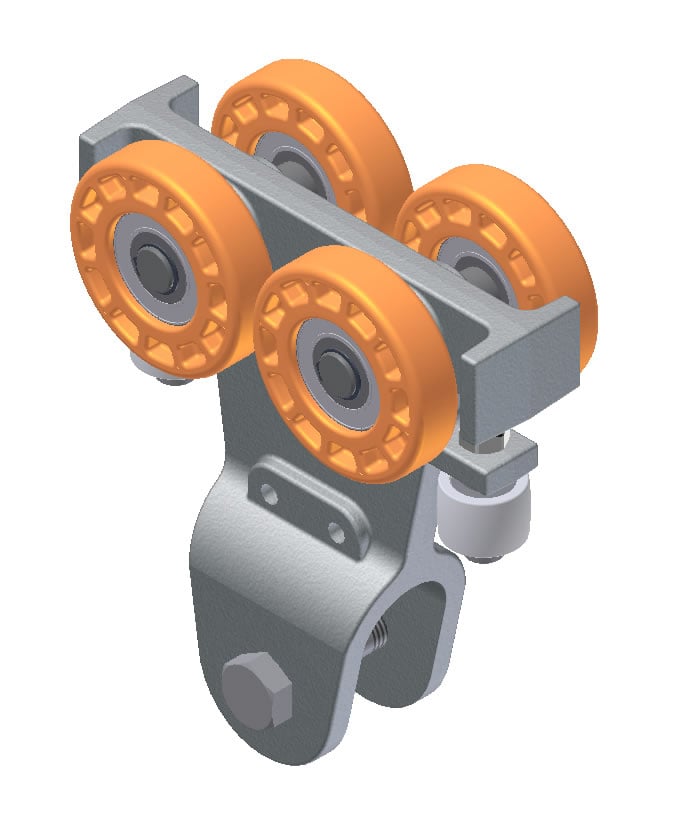

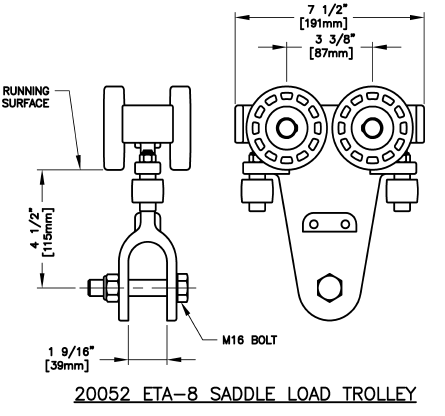

Part # 20052 Saddle Load 1,100lb/550kg Dimensions Exploded View	Part # 20068 Short Body Kickup 1,100lb/550kg Dimensions Exploded View	Part # 20069 Long Body w/Kickup 1,100lb/550kg Dimensions Exploded View

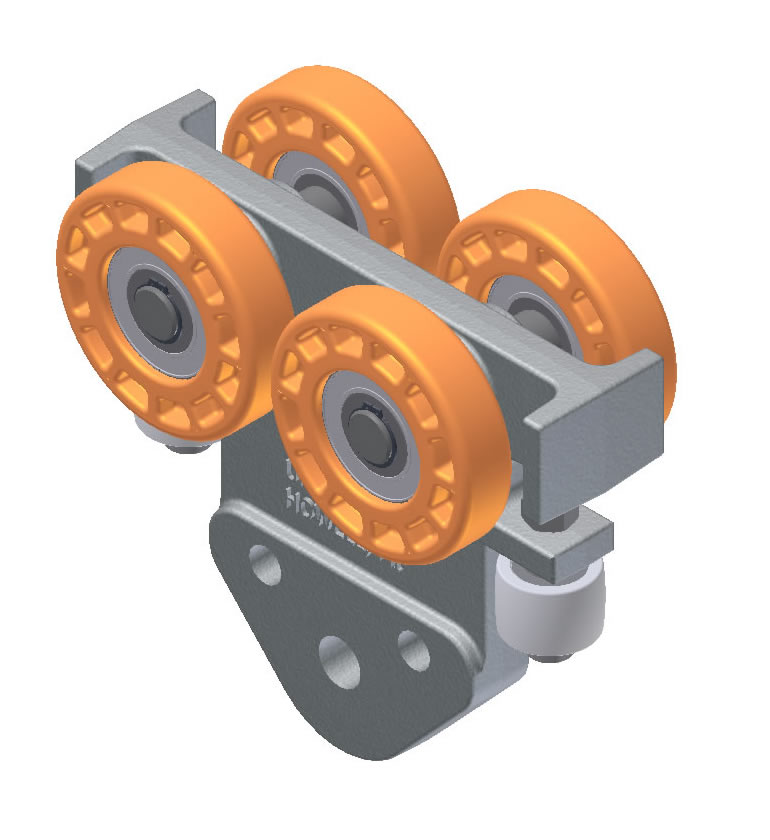

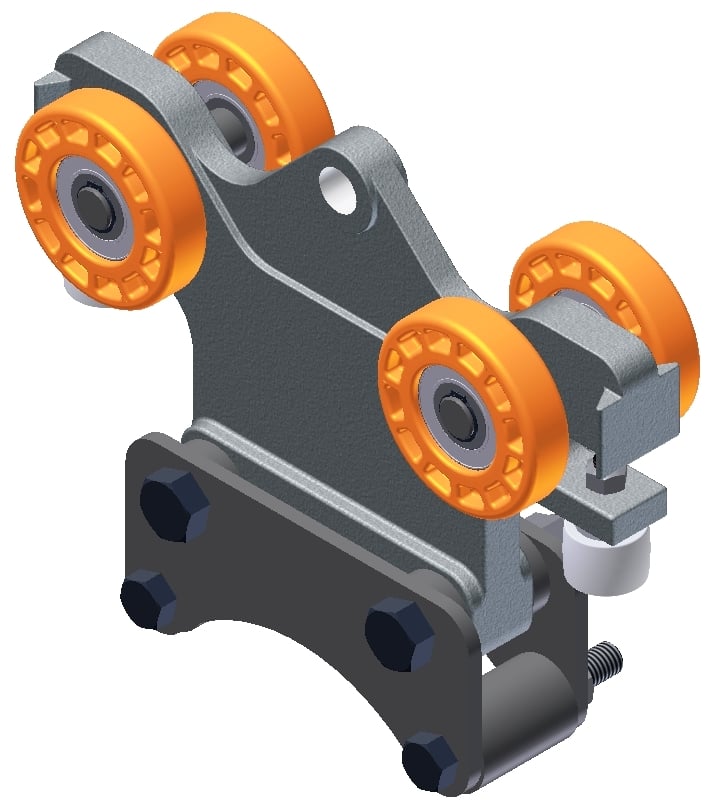

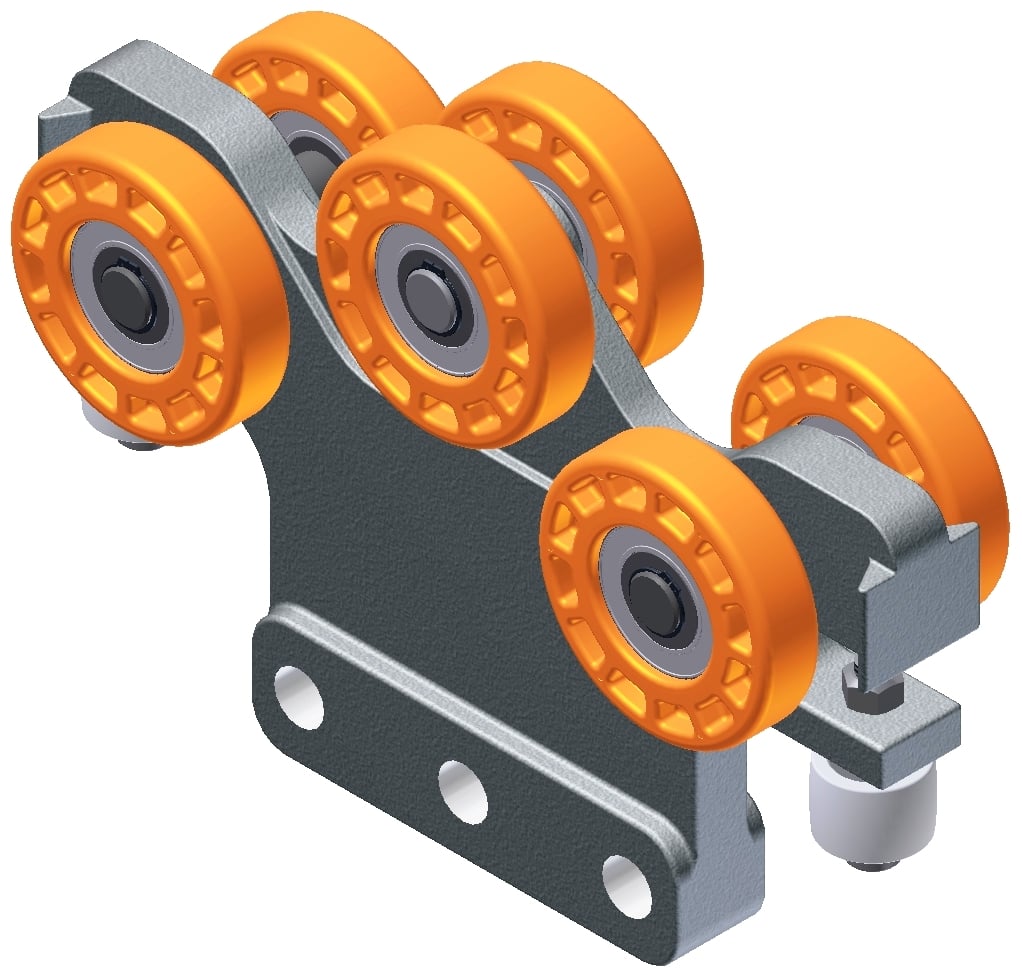

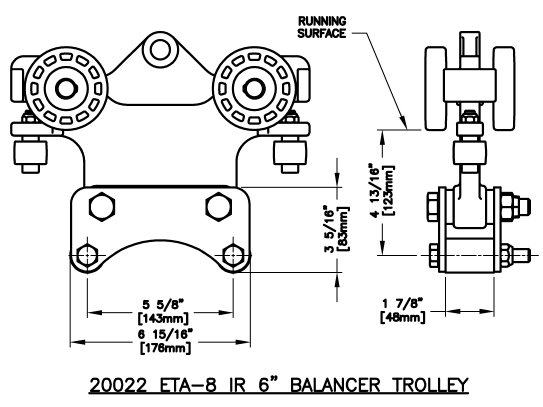

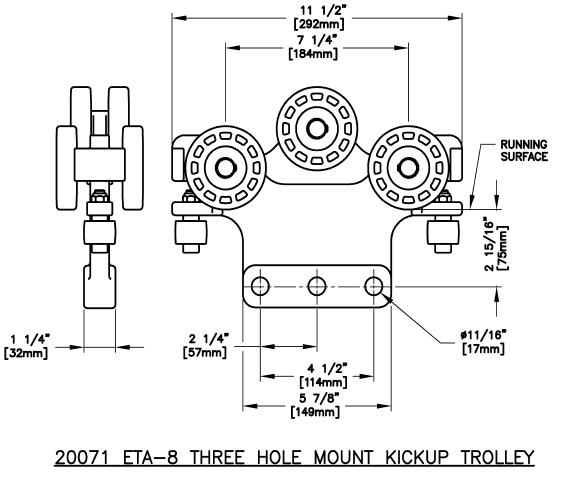

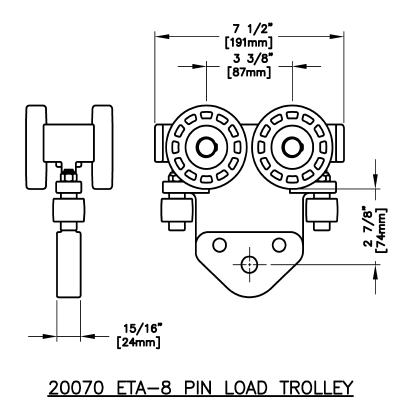

Part # 20071 3 Hole Kickup 1,100lb/550kg Dimensions Exploded View	Part # 20070 Pin Load 1,100lb/550kg Dimensions Exploded View	Part # 20022 6" for IR Balancer 1,100lb/550kg Dimensions

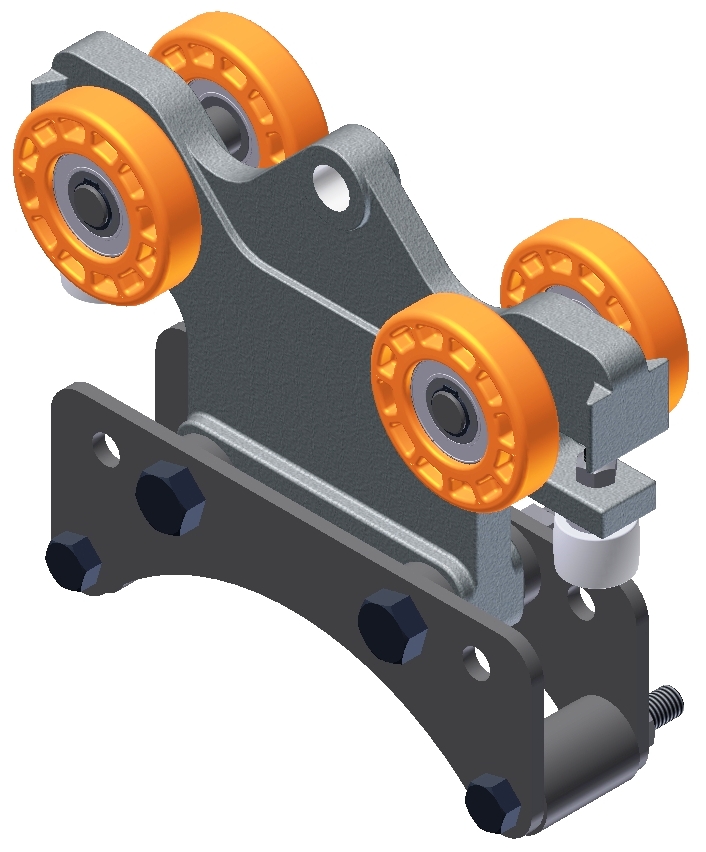

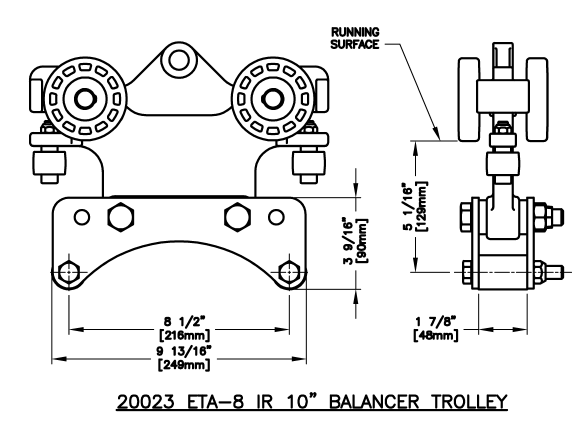

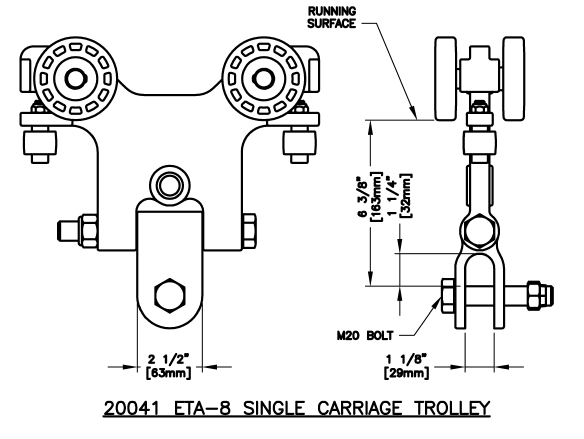

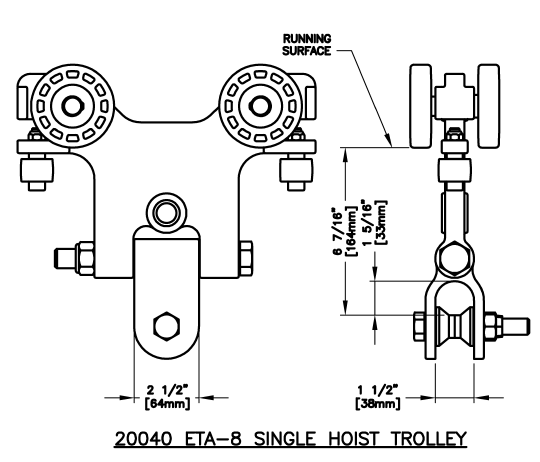

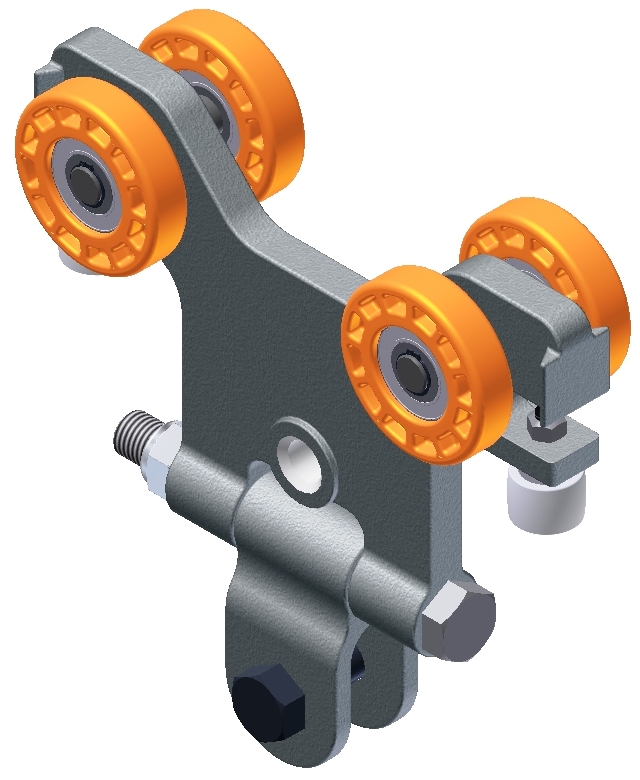

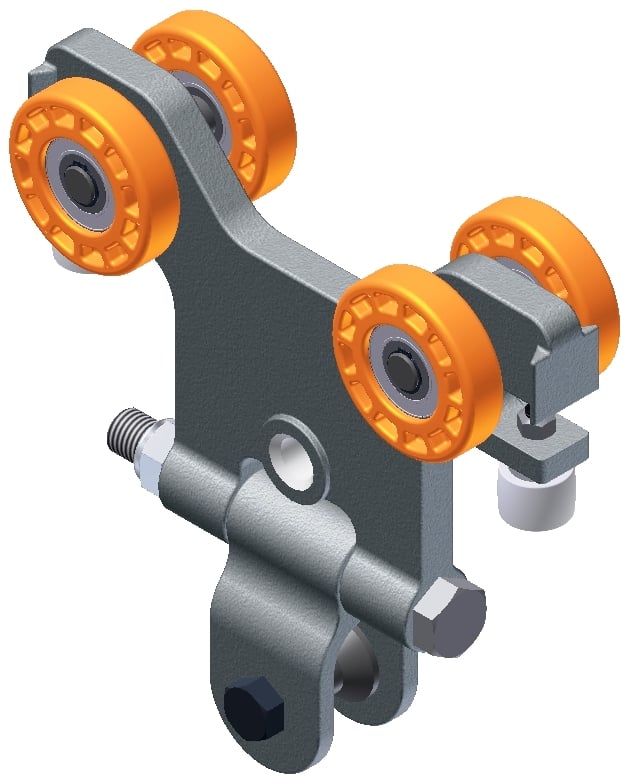

Part # 20023 10" for IR Balancer 1,100lb/550kg Dimensions	Part # 20040 Single Hoist 1,100lb/550kg Dimensions	Part # 20041 Single Carriage 1,100lb/550kg Dimensions

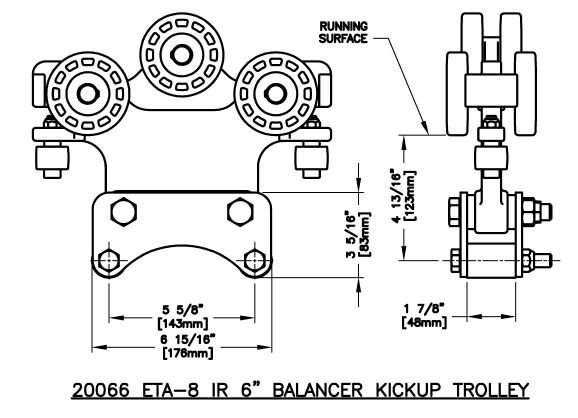

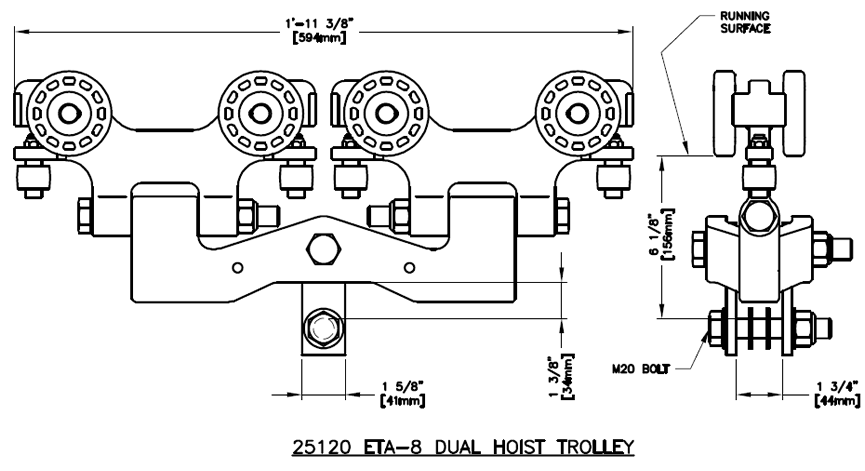

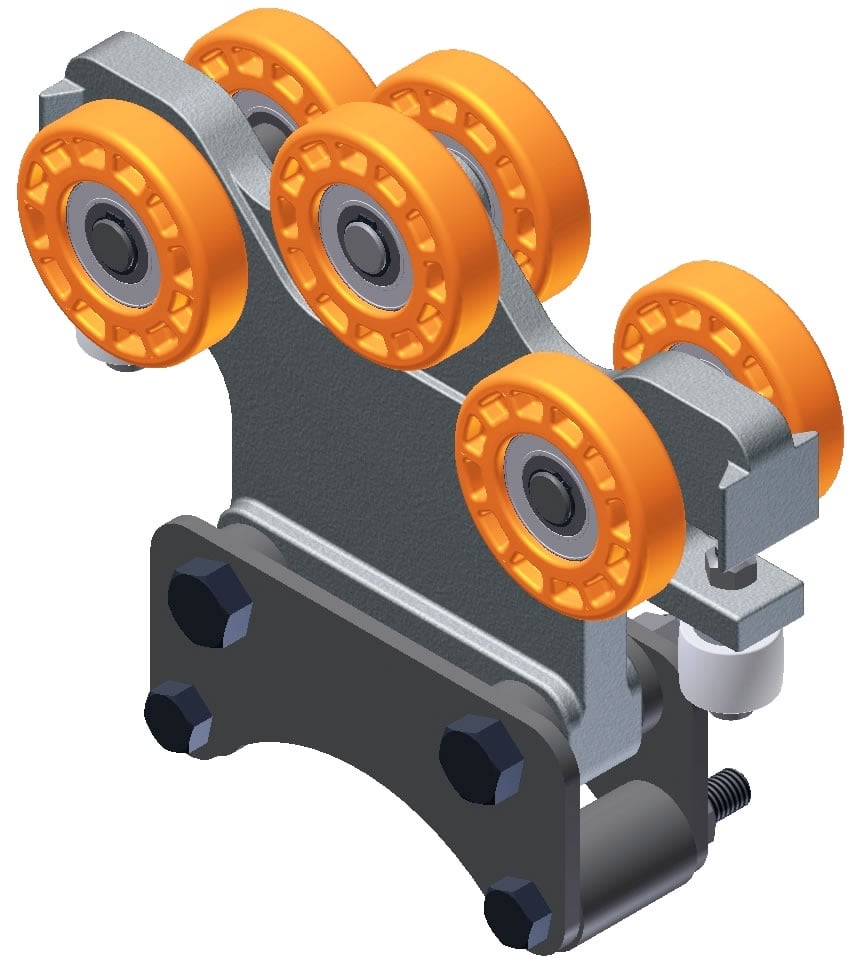

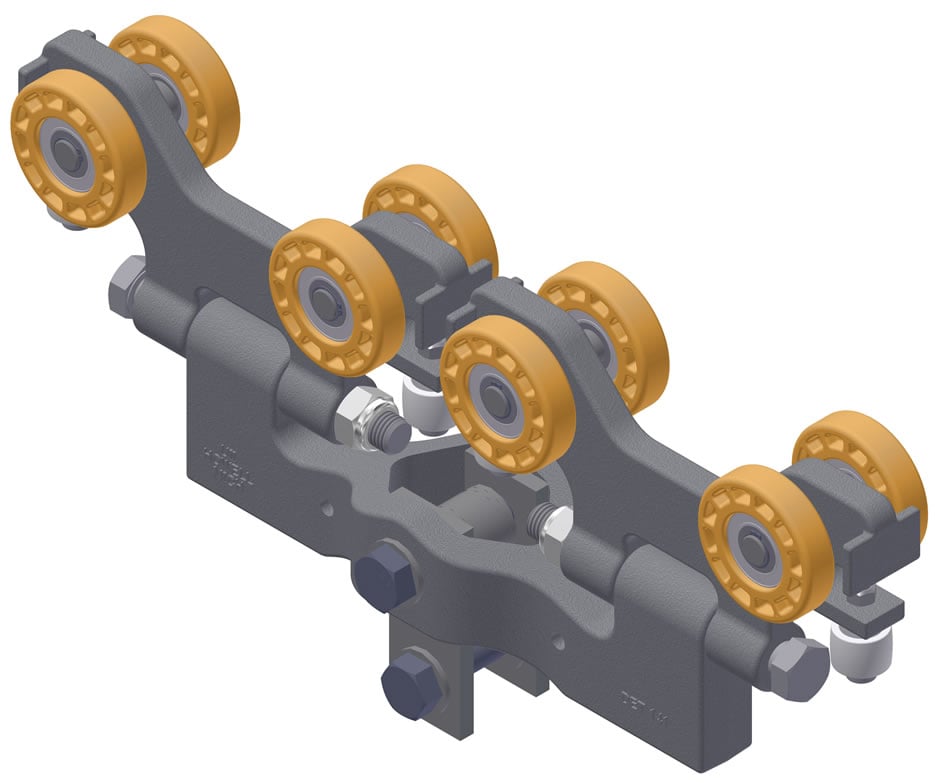

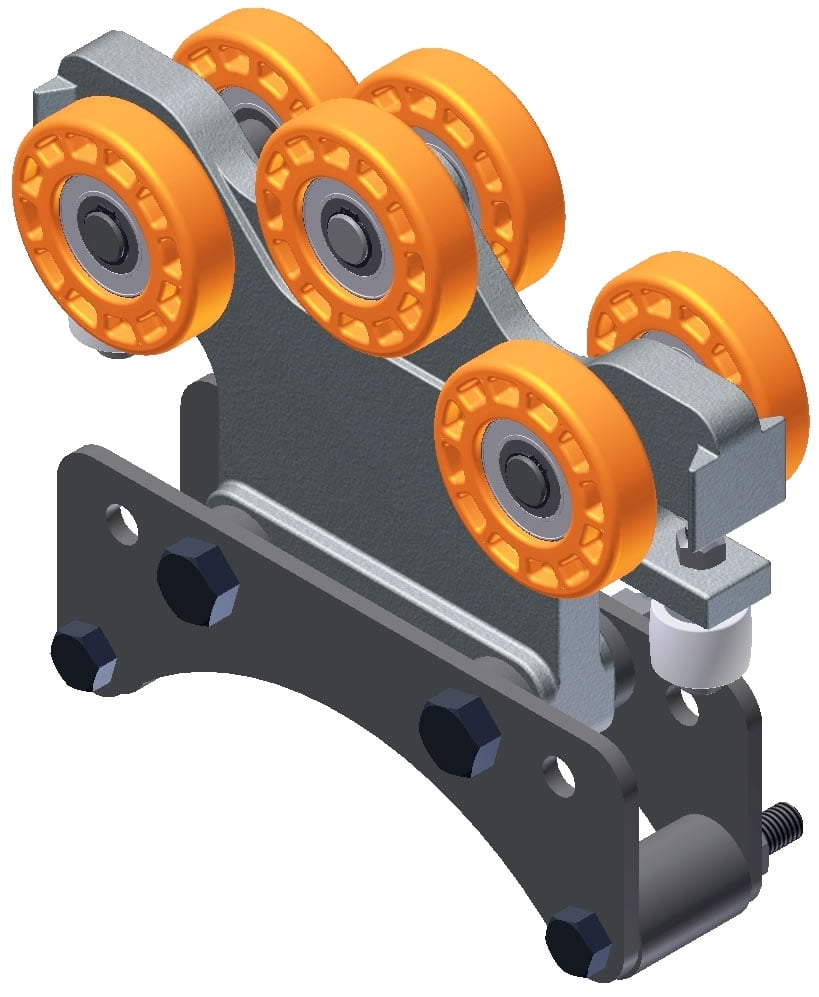

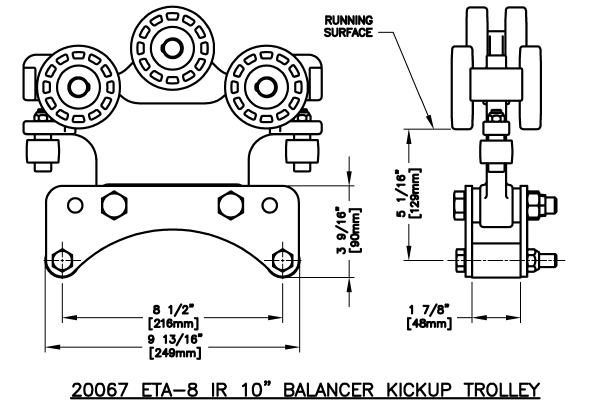

Part # 20066 6" Balancer Kickup 1,100lb/550kg Dimensions	Part # 20067 10" Balancer Kickup 1,100lb/550kg Dimensions	Part # 25120 Dual Hoist 2,200lb/1000kg Dimensions Exploded View

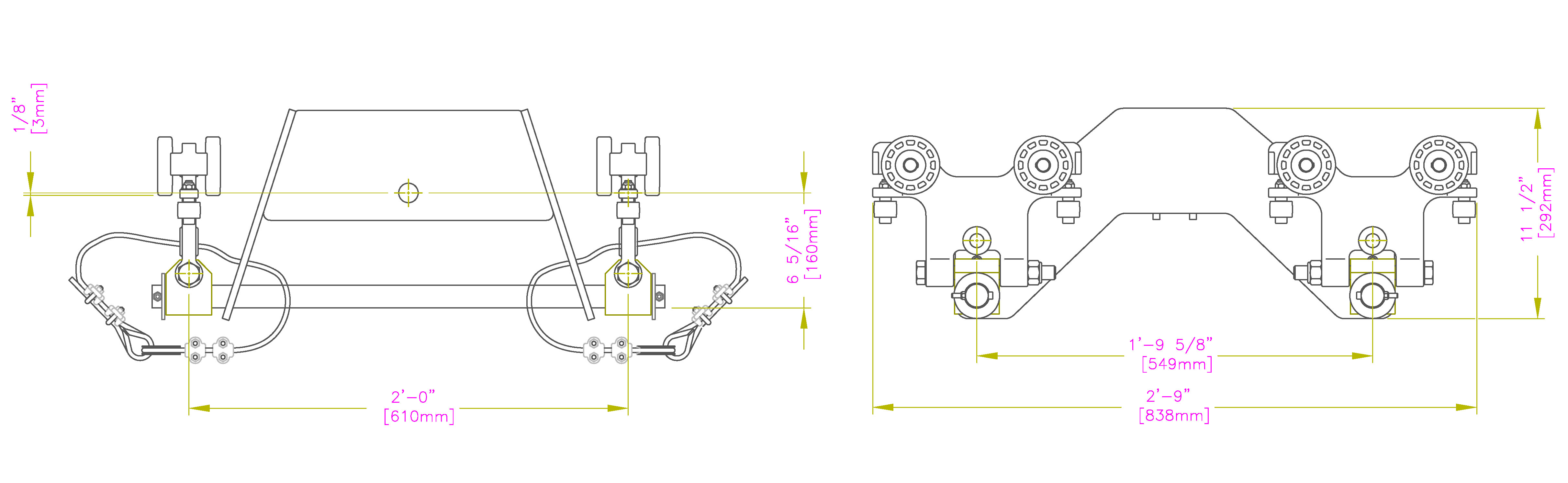

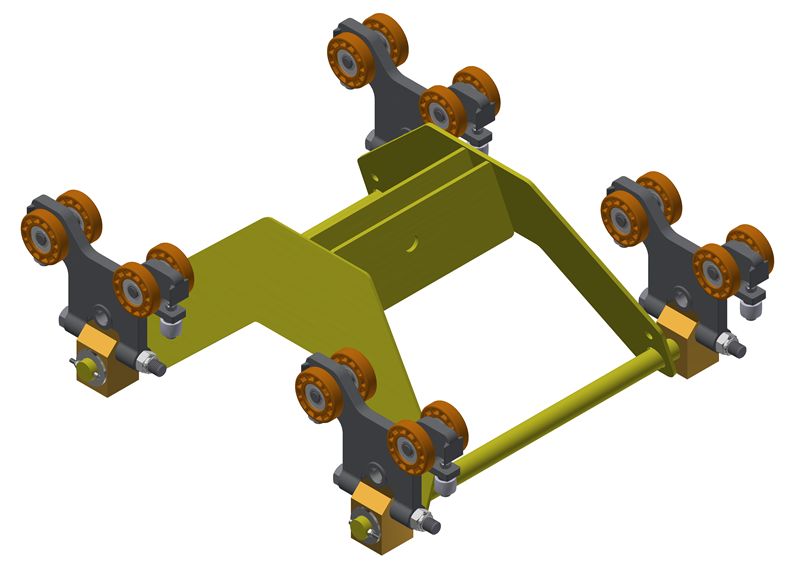

Part # 25480

"A" Frame Nested Hoist Trolley
4,000lb/1814kg
Dimensions

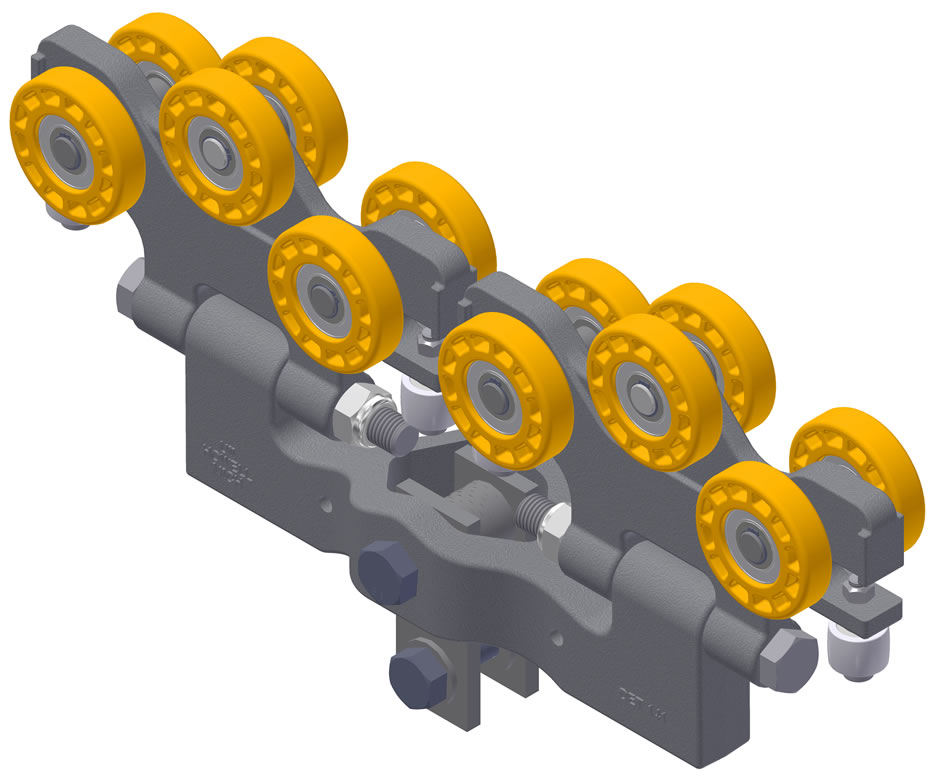

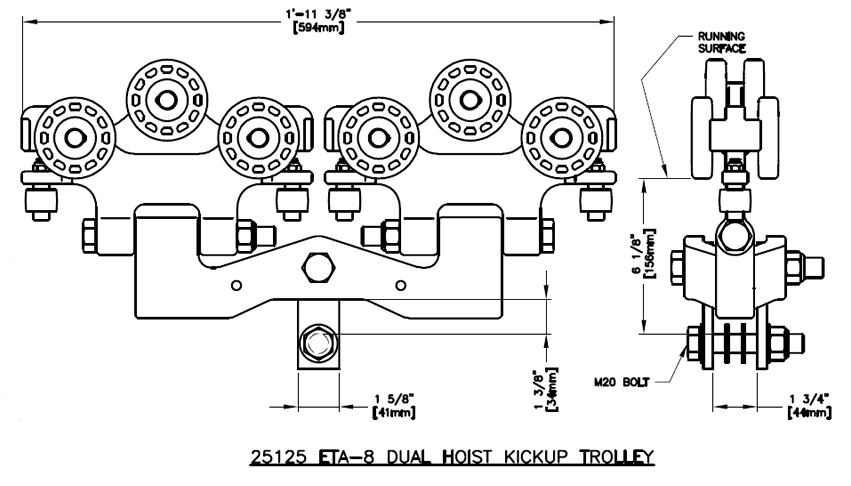

Part # 25125

Dual Hoist Kickup
2,200lb/1000kg
Dimensions
Exploded View

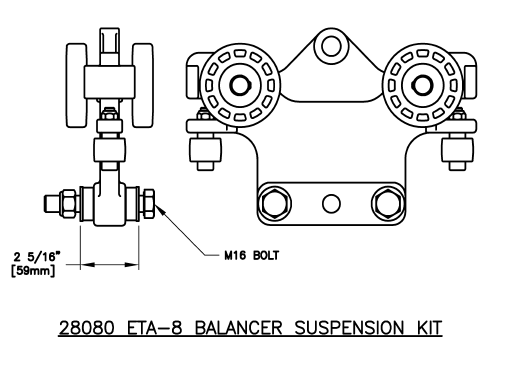

Part # 28080

UII Balancer
1,100lb/550kg
Dimensions

Part #

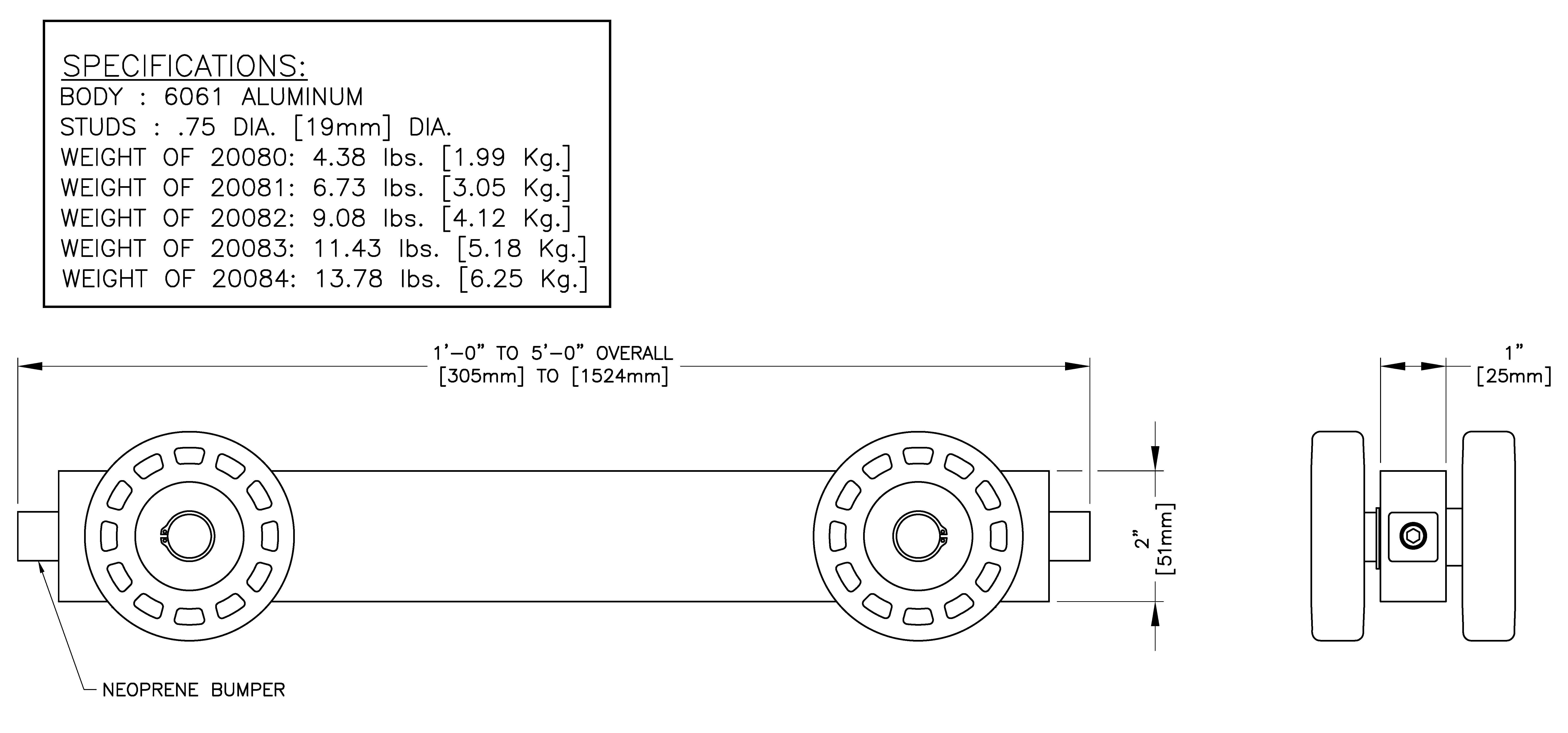

20080 - 1'-0" Bumper Trolley
20081 - 2'-0" Bumper Trolley
20082 - 3'-0" Bumper Trolley
20083 - 4'-0" Bumper Trolley
20084 - 5'-0" Bumper Trolley

NOTE: If your application requires a kick-up forces through a curved section please contact the factory.
