Festoon trolleys are mobile supports for electrical cables or pneumatic and hydraulic lines that allow the cable to move with a hoist, trolley, or other mobile equipment. Festoon trolleys come in a variety of sizes and configurations to handle round or flat cables and hoses.

Features and Benefits

Festoon Trolleys: ETA-4/5 Trolleys | ETA-8 Trolleys

ETA-4/5 Trolley Features*

  • High tensile almag alloy frame
  • 1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
  • High impact nylon guide rollers with dual race ball bearings for smooth, quiet operation
  • Operates within enclosed-rail free from obstructing material
  • Dielectrically insulated
  • Low inertia less than 1% of load
  • Operating temperature range: +32 degrees to +212 degrees F

*excludes cable trolley and festoon slider

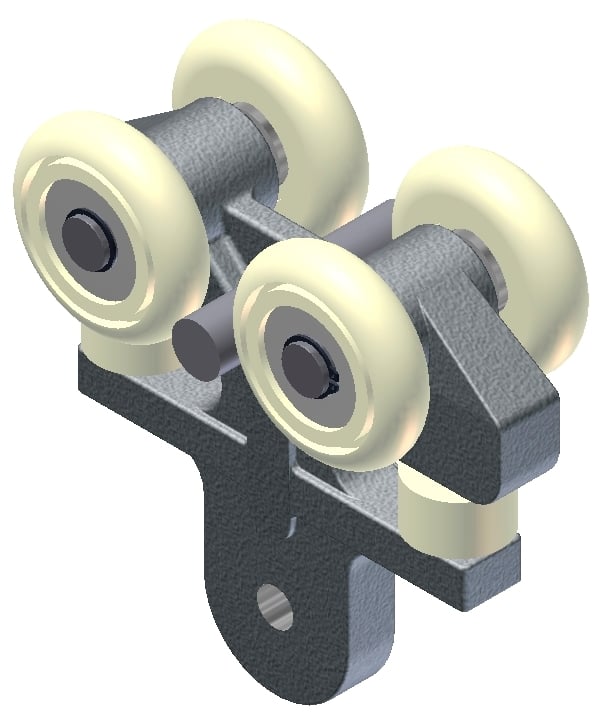

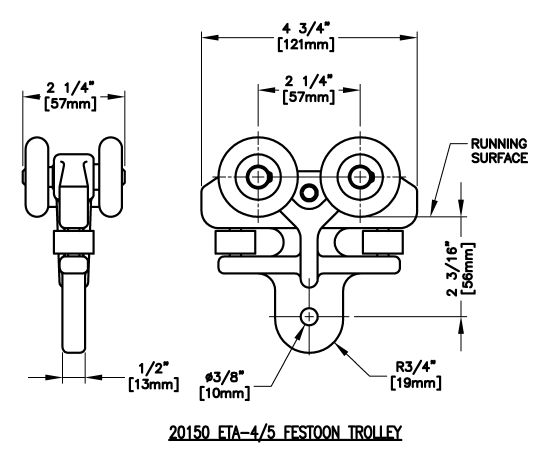

Part # 20150

Festoon Trolley
100lb/45kg
Dimensions
Exploded View

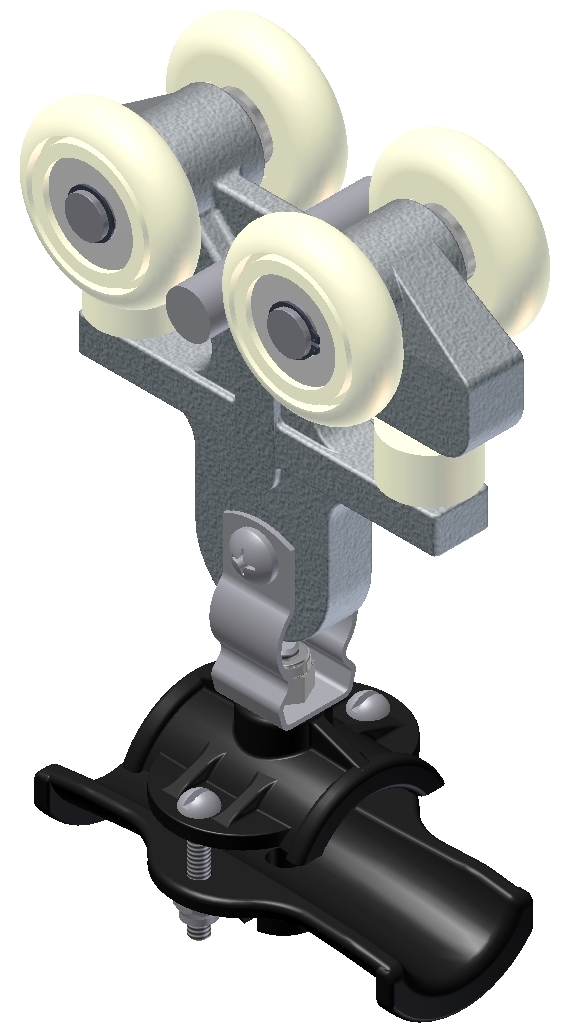

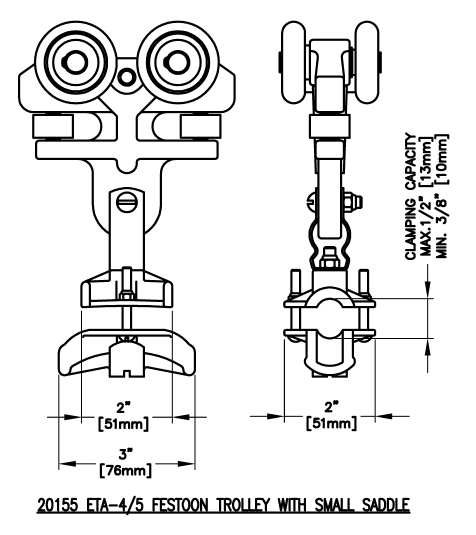

Part # 20155

Small Saddle Trolley
Dimensions

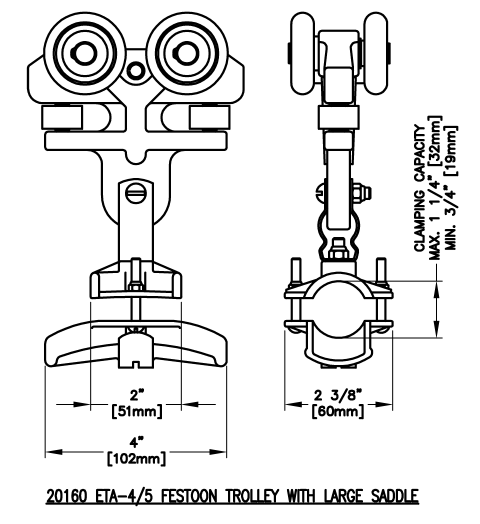

Part # 20160

Large Saddle Trolley
Dimensions

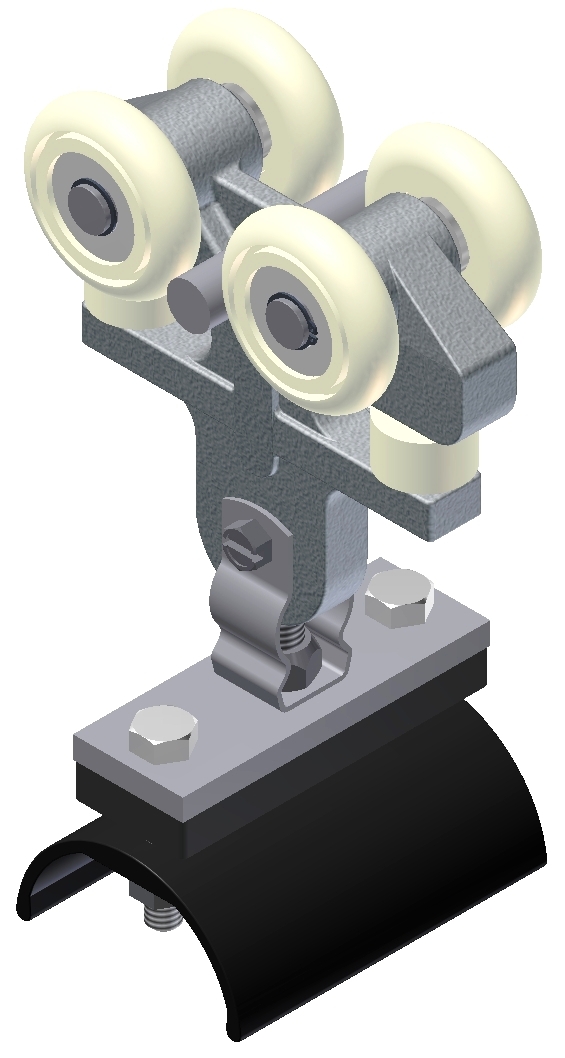

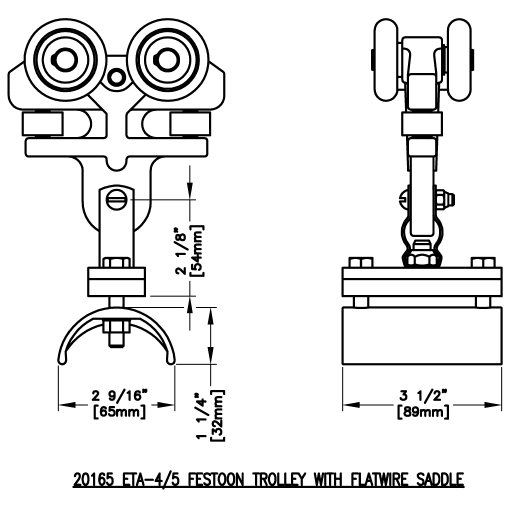

Part # 20165

Flatwire Saddle Trolley
Dimensions

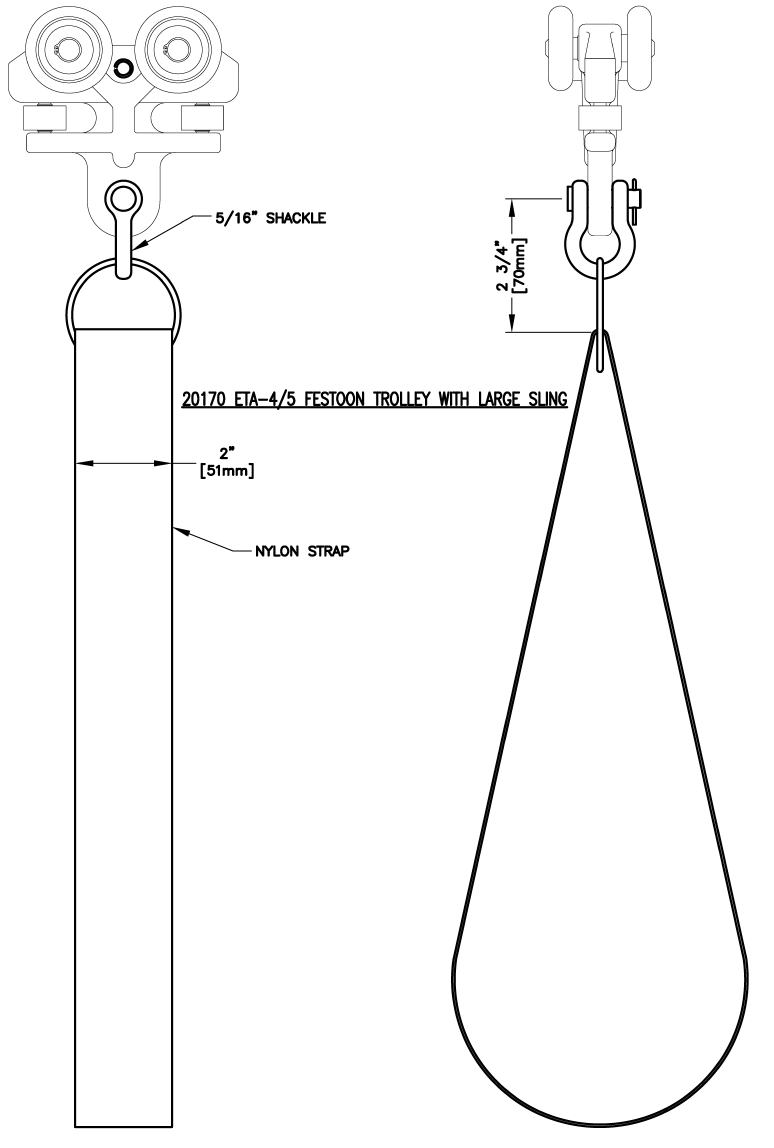

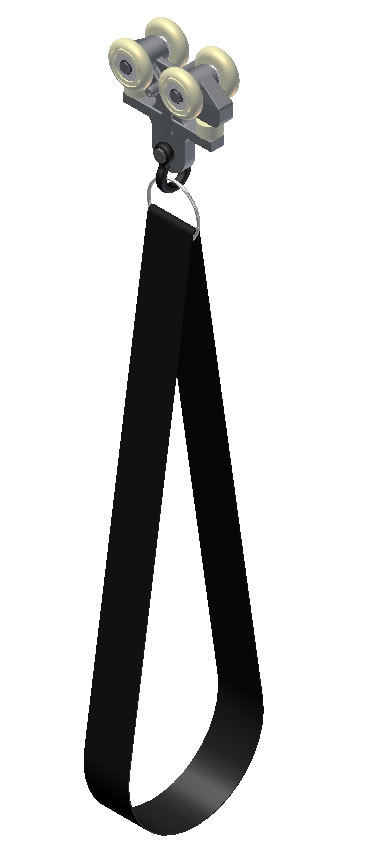

Part # 20170

Large Sling Trolley
Dimensions

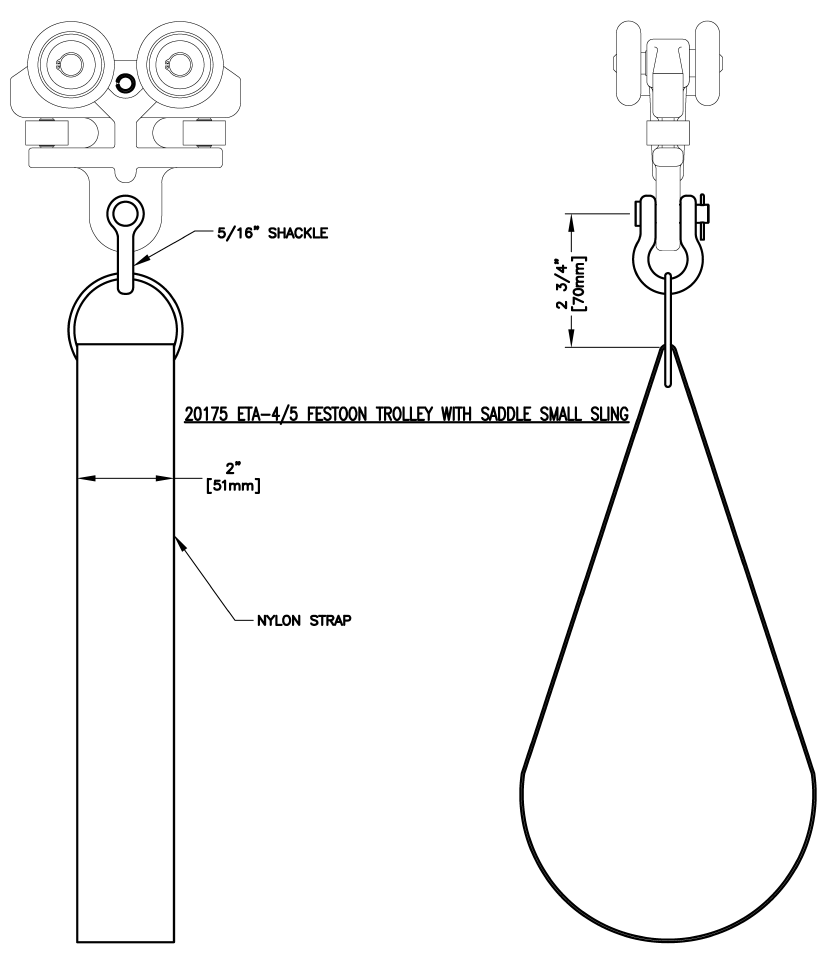

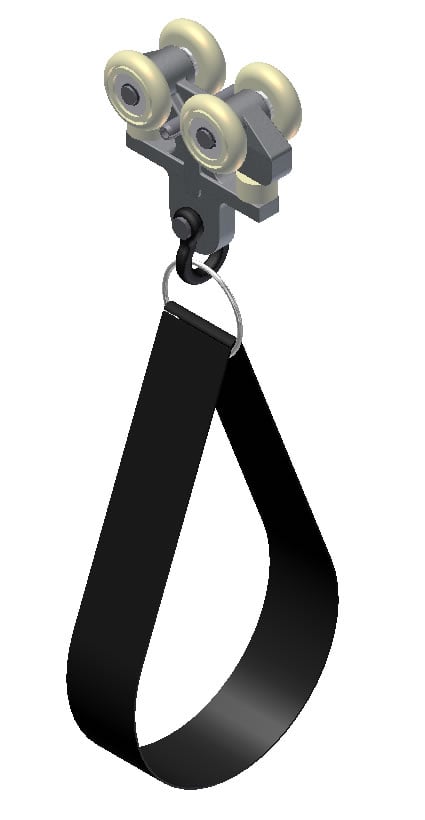

Part # 20175

Small Sling Trolley
Dimensions

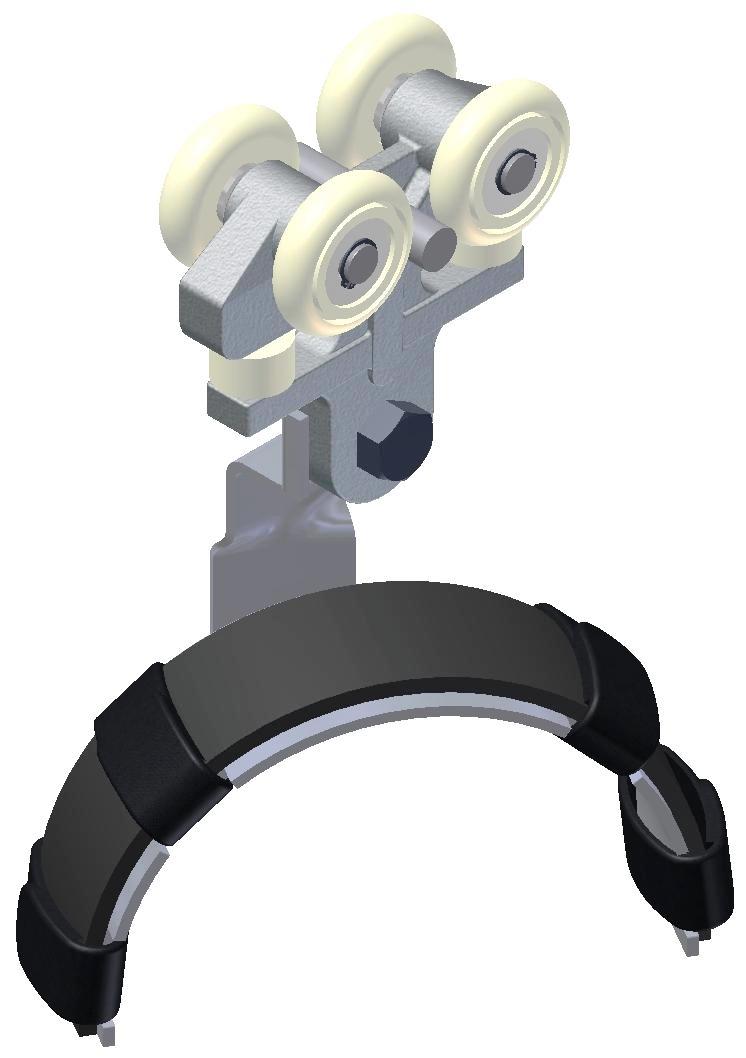

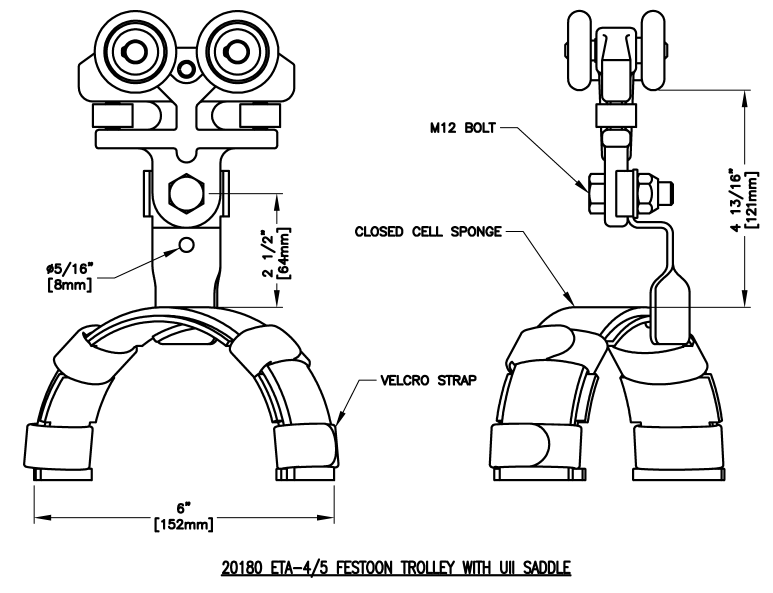

Part # 20180

UII Saddle Trolley
Dimensions

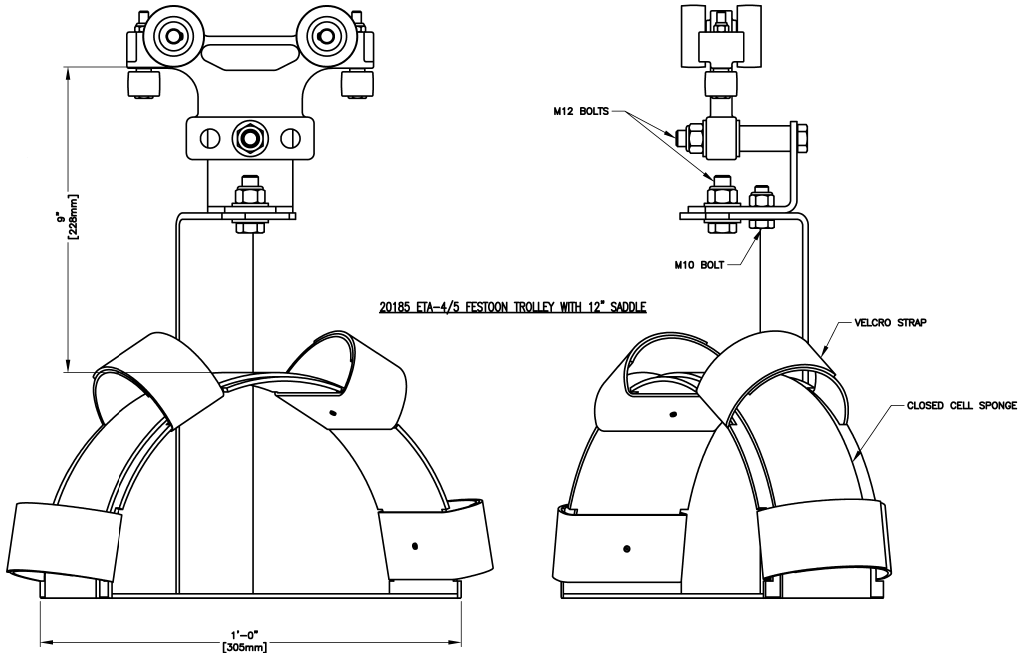

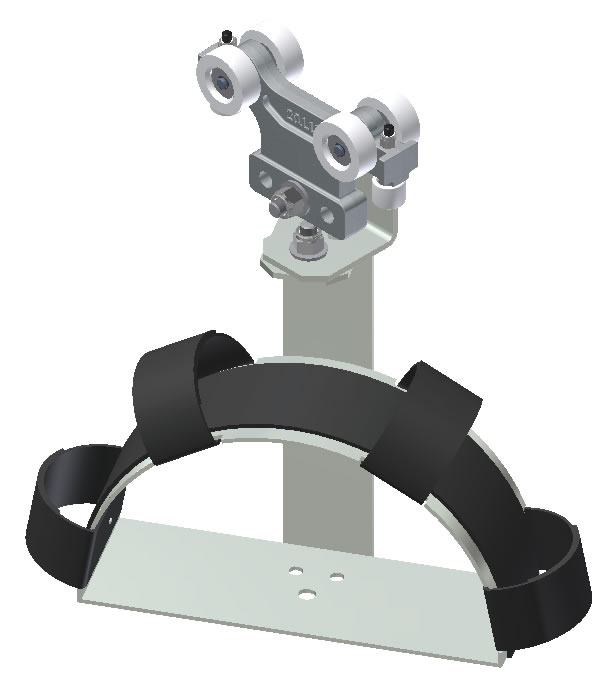

Part # 20185

UII Saddle Trolley with 12" Saddle
Dimensions

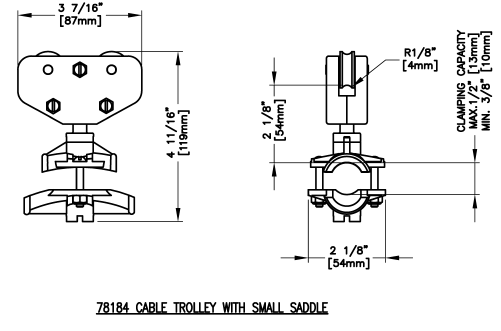

Part # 78184

Cable Trolley with Small Saddle
Dimensions

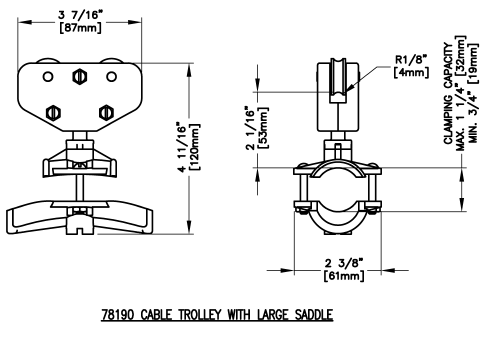

Part # 78190

Cable Trolley with Large Saddle
Dimensions

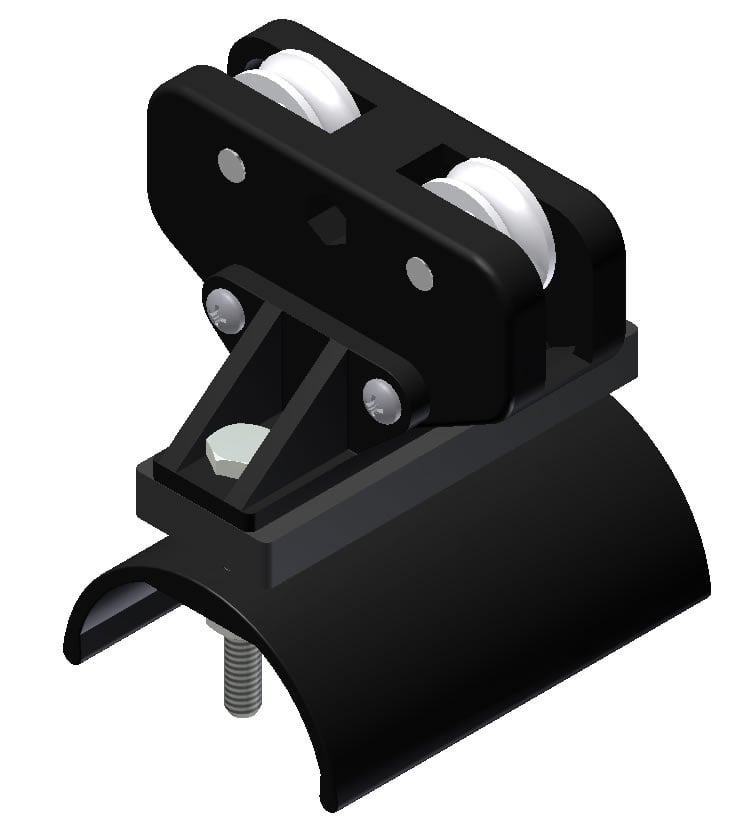

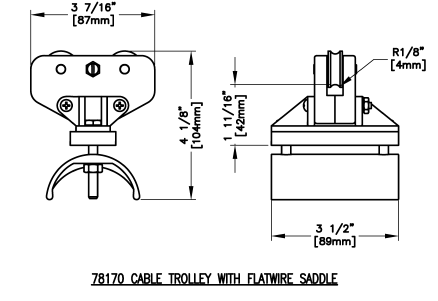

Part # 78170

Cable Trolley with Flatwire Saddle
Dimensions

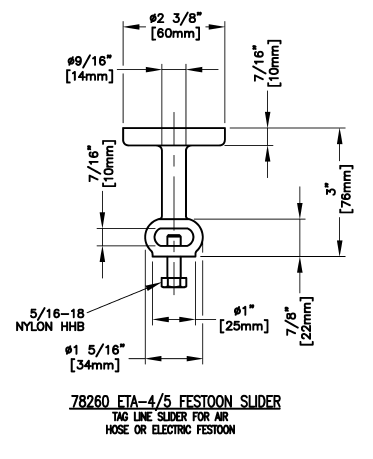

Part # 78260

Festoon Slider
Dimensions



ETA-8 Trolley Features*

  • High tensile almag alloy frame
  • 1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
  • High impact nylon guide rollers with dual race ball bearings for smooth, quiet operations
  • Operates within enclosed-rail free from obstructing material
  • Dielectrically insulated
  • Low inertia less than 1% of load
  • Operating temperature range: +32 degrees to +212 degrees F

*excludes cable trolley and festoon slider

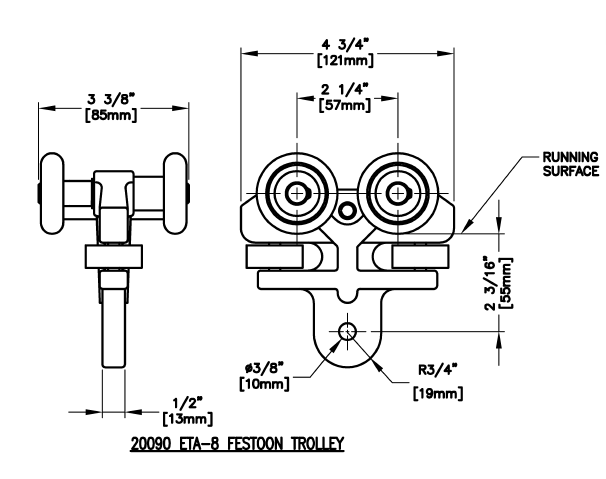

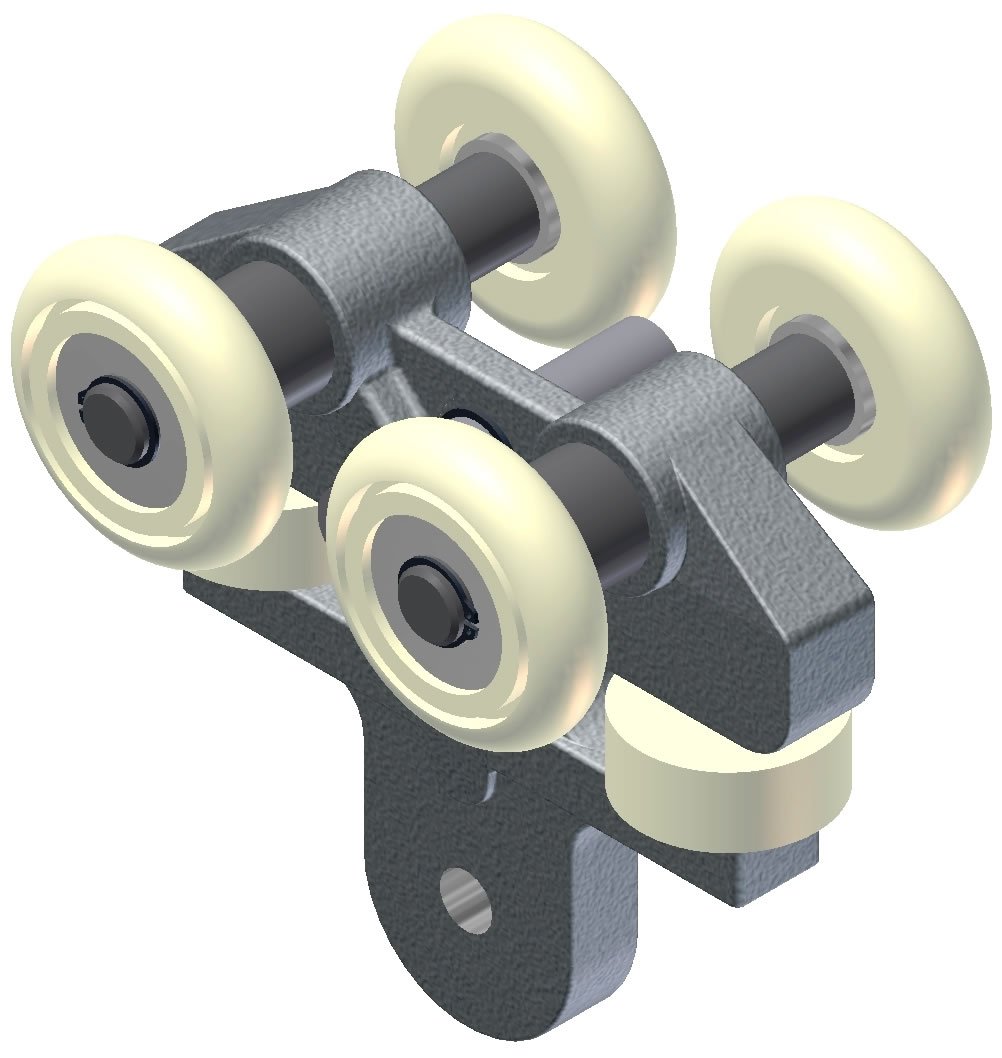

Part # 20090

Festoon Trolley
100lb/1.5lbs
Dimensions
Exploded View

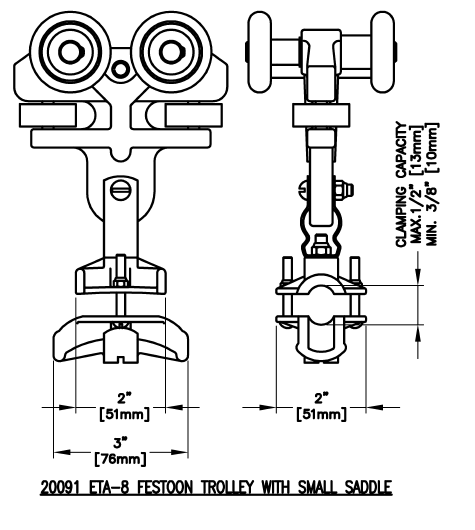

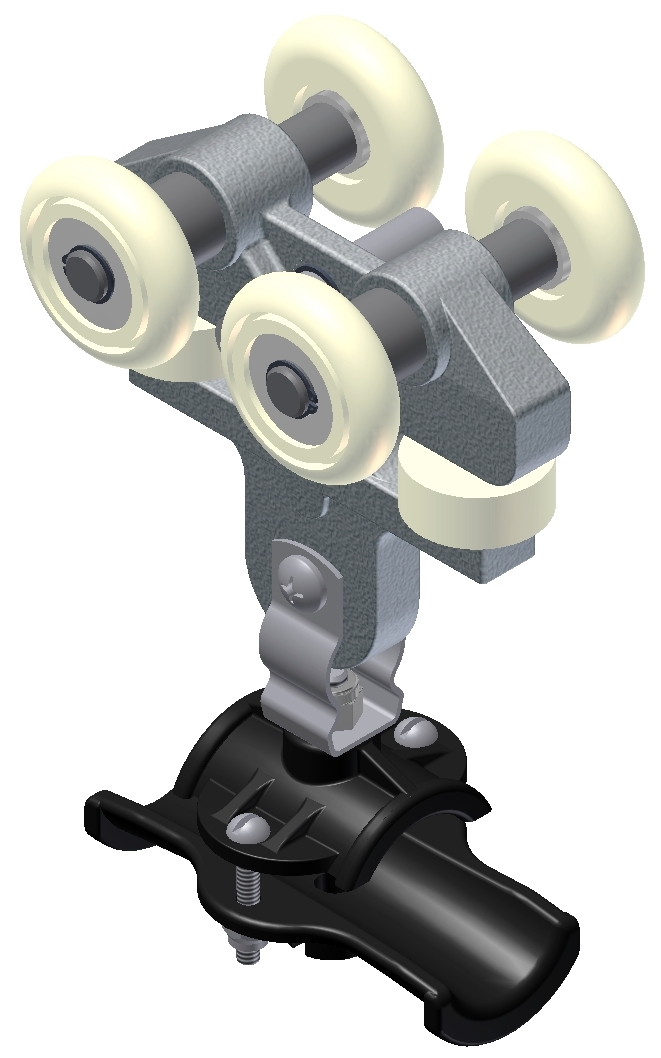

Part # 20091

Small Saddle Trolley
Dimensions

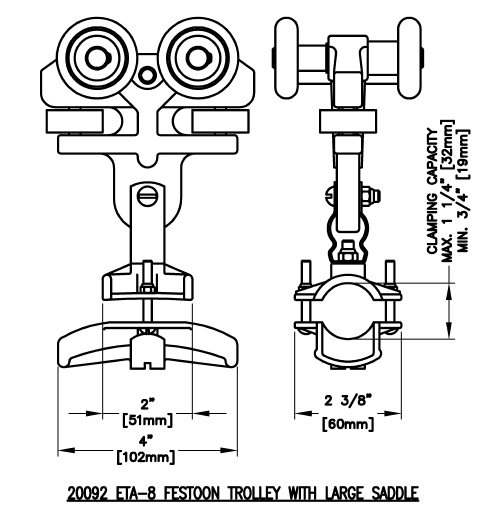

Part # 20092

Large Saddle Trolley
Dimensions

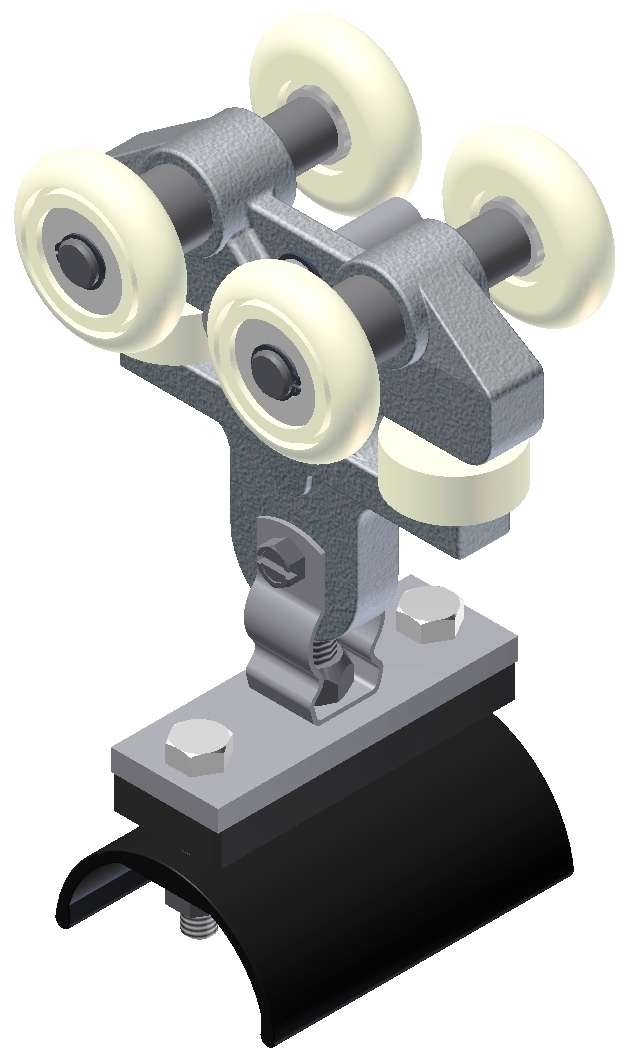

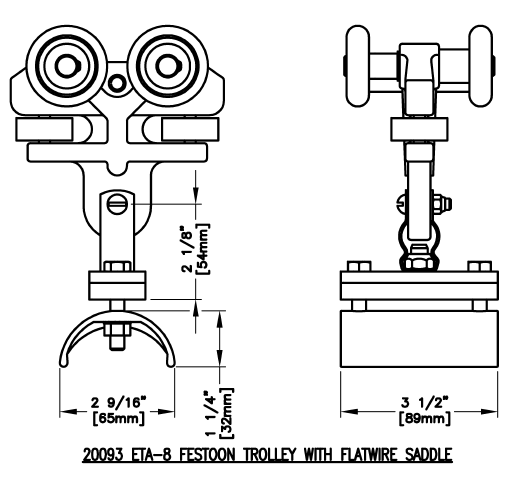

Part # 20093

Flatwire Saddle Trolley
Dimensions

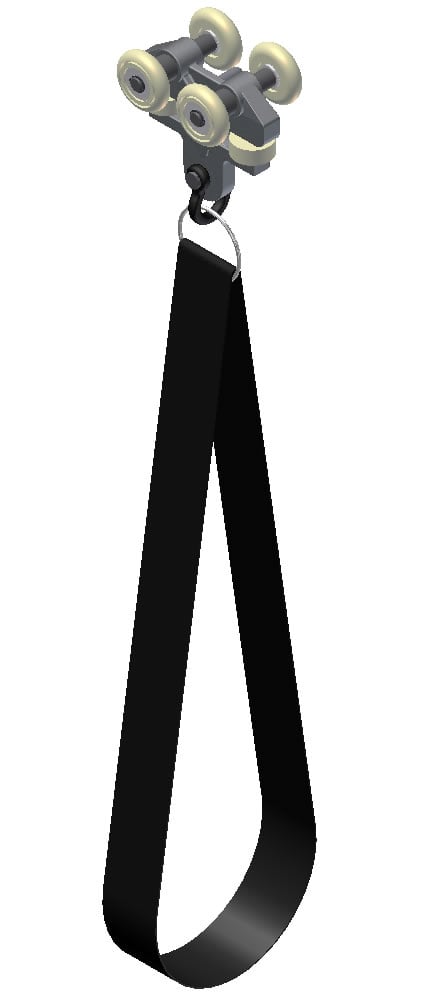

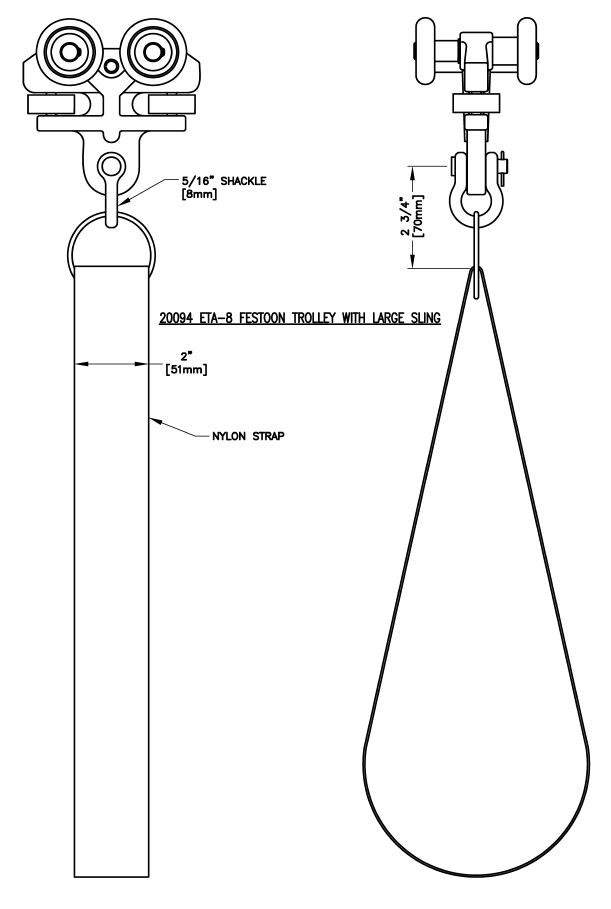

Part # 20094

Large Sling Trolley
Dimensions

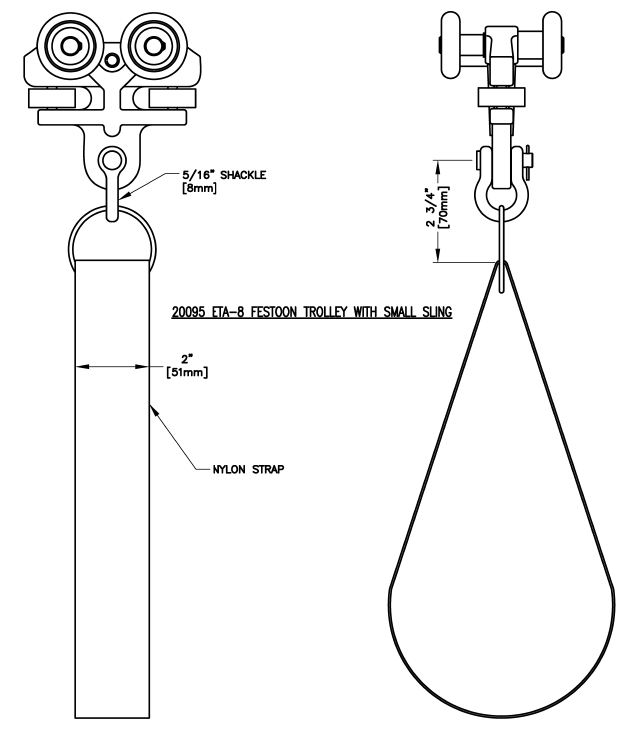

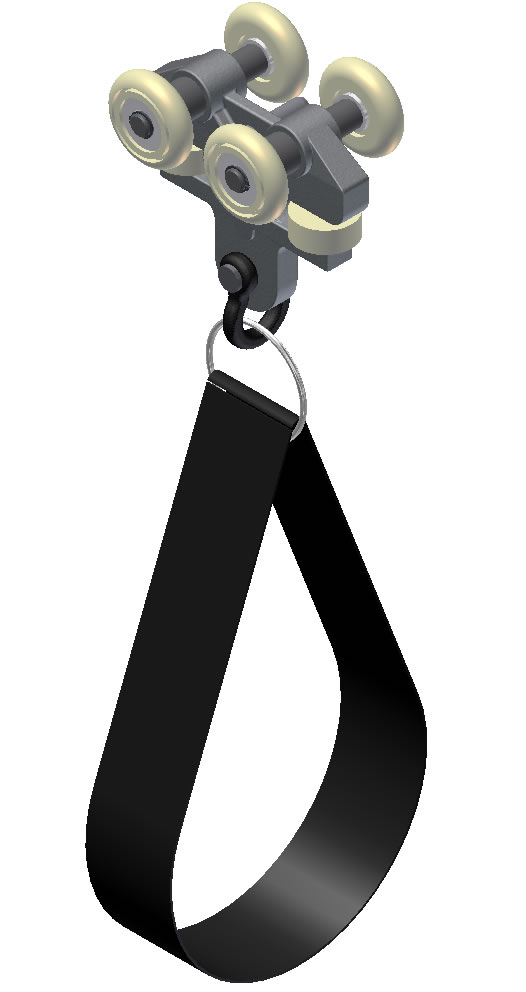

Part # 20095

Small Sling Trolley
Dimensions

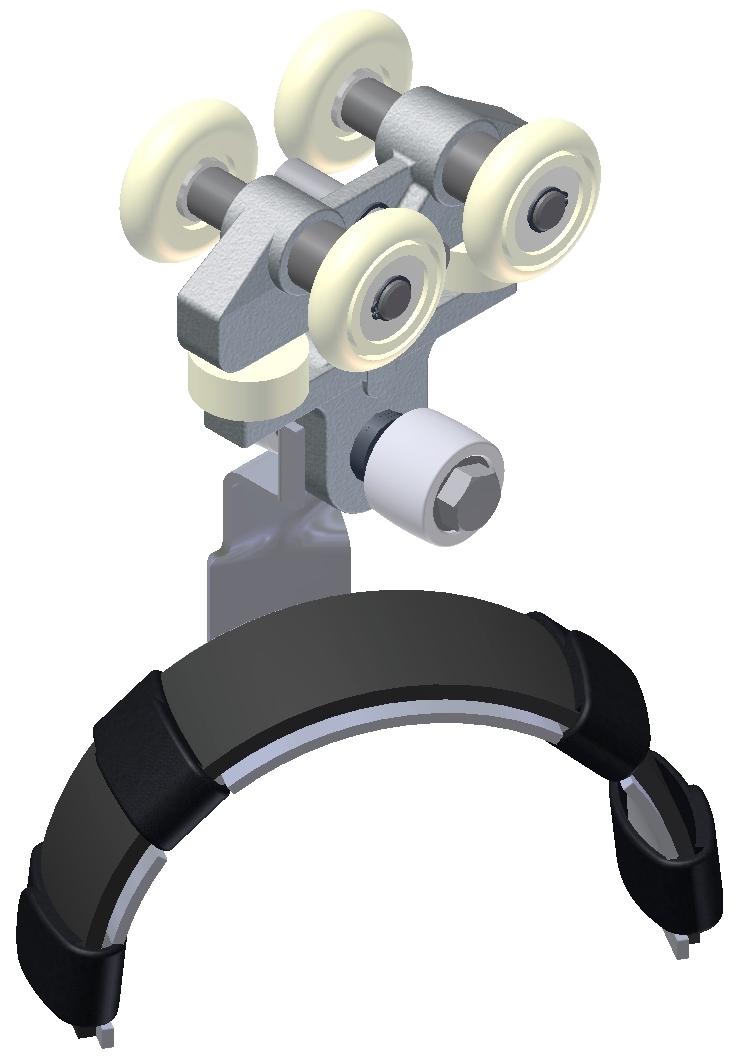

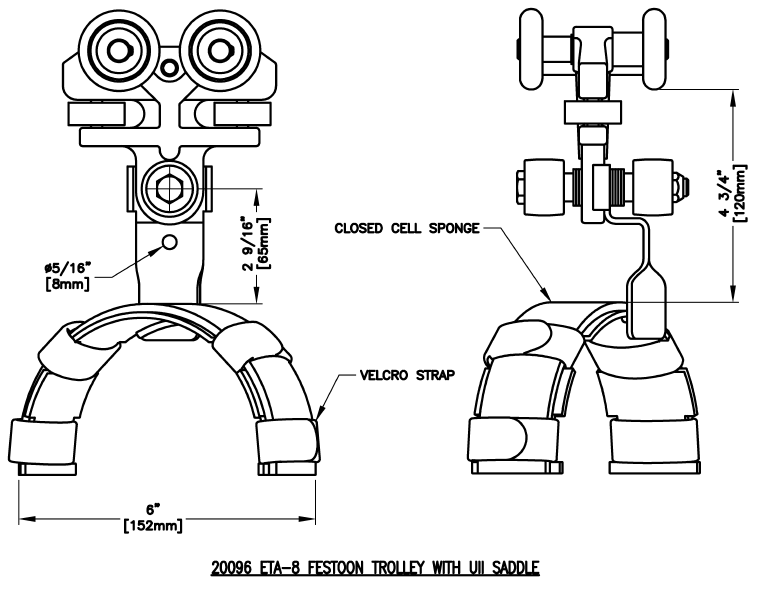

Part # 20096

UII Saddle Trolley
Dimensions

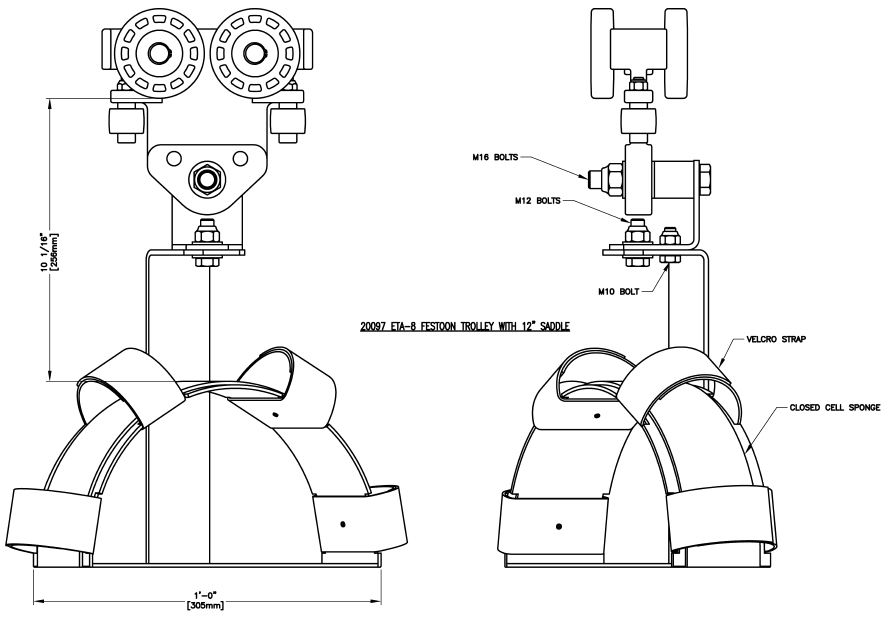

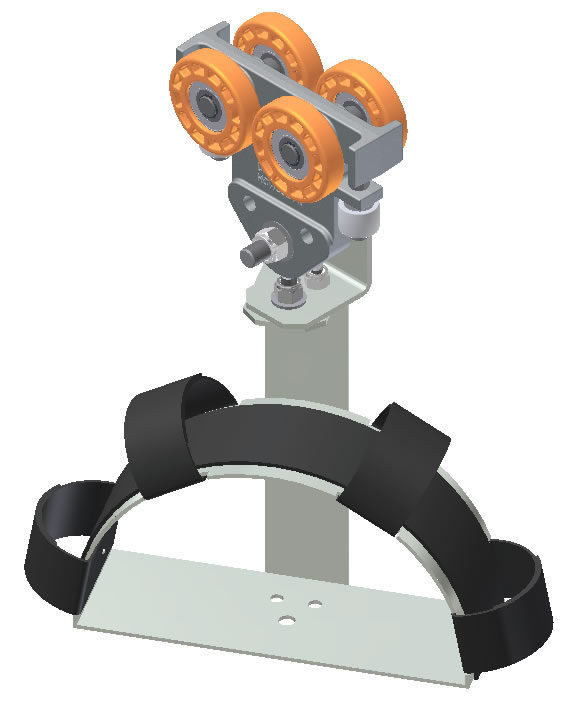

Part # 20097

Festoon Trolley with 12" Saddle
Dimensions

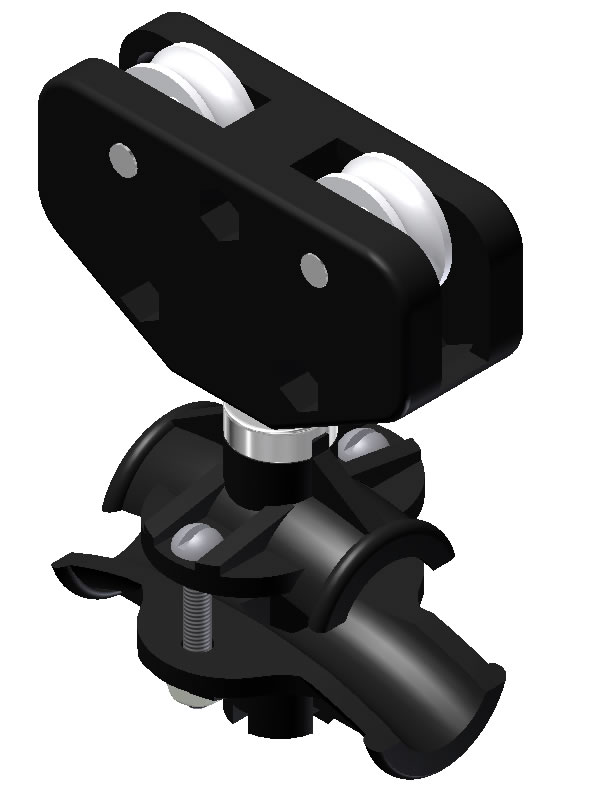

Part # 78184

Cable Trolley with Small Saddle
Dimensions

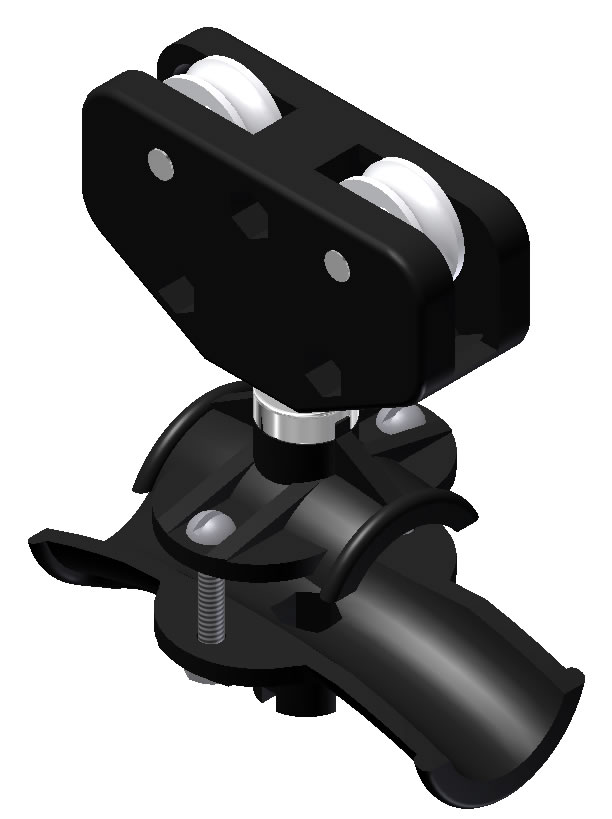

Part # 78190

Cable Trolley with Large Saddle
Dimensions

Part # 78170

Cable Trolley with Flatwire Saddle
Dimensions

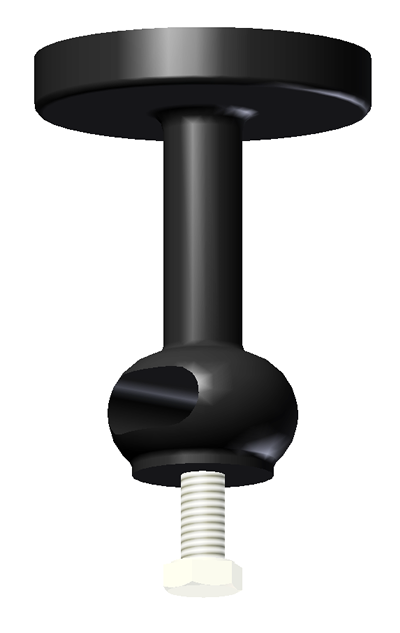

Part # 78260

Festoon Slider
Dimensions
