Tornado 360 Lever Hoist

Lever Hoists

The CM^® Tornado 360°™ features the revolutionary Sidewinder™ lever handle that allows efficient operation in both lifting and pulling applications. Ergonomically designed for increased safety, the patent-pending CM^® Tornado 360°™ lets the operator work up to 12 times faster with as much as 30% less pull force than with conventional ratchet lever tools.

CM Tornado 360 Lever Hoist Brochure CAN CM Tornado 360 Operations Manual CM Tornado 360 Dibujo dimensional 3/4 Ton-6 Ton CM Tornado November 2016 Manual CM Tornado 360 Lever Hoist 2016 September 192034281 Rev AA EN FR CM Tornado September 2016 Manual CM Tornado June 2017 Manual CM Tornado June 2018 Manual CM Tornado 360 Lever Hoist 2018 September 192034281 Rev AE EN_ES_FR CM Tornado January 2019 Manual CM Tornado 360 Load Limiter Operations Manual Manual Hoists Spec Template Rev 4 Tornado 360 Lever Hoist Brochure

FEATURES and BENEFITS

SIDEWINDER LEVER HANDLE

This first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry. Its unique foldable handle and 360° rotating lever increases productivity while reducing the risk of operator injury.

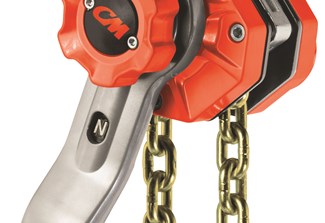

CONVENIENT DIRECTIONAL INDICATOR

Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as lifting, lowering or neutral.

EASY and SMOOTH FREE CHAINING

For quick take up and positioning of slack chain - even with one hand. Designed not to accidently free chain while under load. Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist.

POSITIVE LOAD CONTROL

Enclosed Weston-type brake stays clean and dry for precise load positioning.

BUILT TO LAST

Lightweight aluminum housing withstands rigorous use and features high-quality, long-lasting bearings. Powder coat finish provides extra protection in harsh environments.

EXCELLENT CORROSION PROTECTION

Robust chain guide and chain stripper made from cast steel and zinc-plated for corrosion protection.

100% LOAD TESTED ZINC-PLATED CHAIN

Protects against corrosion.

EASY-TO-INSPECT SWIVEL HOOKS

Bolt-on hooks with nylon locks help users comply with ASME B30.21 and B30.10 inspection requirements. Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.

INDUSTRY-LEADING WARRANTY

Our lifetime warranty on all mechanical components, including the Sidewinder lever handle, is the industry's best warranty against manufacturing and material defects. With our 3-year brake warranty, if the brake discs wear out within 3 years from the date of purchase, CMCO will replace the ratchet disc assembly free of charge.

EASY IDENTIFICATION

Each unit has a unique serial number for easy and accurate identification.

LIFETIME WARRANTY

MEETS ASME B30.21

OPTIONS:

GOLD CHROMATE CHAIN

Designed and manufactured in the U.S.A. by Columbus McKinnon. Protects against corrosion.

SHIPYARD HOOKS

Available on 1-1/2 and 3 ton units only.

INTERNAL LOAD LIMITER

Allows the handle to rotate freely, preventing the lifting of an overload sufficient to damage the hoist. Units equipped with a load limiter feature a black hand wheel for quick and easy on-site identification.
