HMPD-C Series Industrial Linear Actuator
HMPD-C Series Industrial Linear Actuator

HMPD Series w/Clutch - 250 lbs

Linear Actuators

HMPD-C Series Industrial Linear Actuator
HMPD-C Series Industrial Linear Actuator

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 18 in (76 to 457 mm)
SPEED: 1 to 2 in/s (25 to 50 mm/s)
TEMPERATURE RANGE: 25F to 120F (-4C to 50C)
ENVIRONMENTAL RATING: IP50 Protection Standard

Free Application Analysis
HMPB w/Clutch Product Sheet Duff-Norton Linear Actuator Design Guide HMPD w/Clutch Dimensional Drawing HMPD w/Clutch OandM Manual HMPD w/Clutch Specs and Part Numbers Linear Actuator Quick Reference Guide SuperCylinder Application Analysis Form Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES and BENEFITS

HMPD Series -250 lb Linear Actuator with Clutch

VERSATILE DESIGN

Wide range of capacities and voltages for integration into a variety of applications

DURABLE

Heavy duty design for long life in tough environments

CORROSION RESISTANT

Aluminum housing and outer tube

PRECISE POSITIONING

Precise and repeatable positioning with internal, adjustable limit switches

OVERLOAD PROTECTION

Automatic reset thermal overload motor protection

MECHANICAL BRAKING SYSTEM

Reduces back driving and stopping distance

CUSTOM SOLUTIONS

Available with experienced Application Engineering Team

Options

OPTIONS:

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection

Specifications

HMPD with Clutch Series Product Specifications
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Duty Cycle*
# (lbs) N in mm in mm VDC Amp in/s mm/s %
MPD3405-3 (250) 1112 3 76 10 254 12 VDC 14 1 25 21%
MPD3405-6 (250) 1112 6 152 13 330 12 VDC 14 1 25 21%
MPD3405-12 (250) 1112 12 304 19 483 12 VDC 14 1 25 21%
MPD3405-18 (250) 1112 18 457 25 635 12 VDC 14 1 25 21%
MPD3404-3 (250) 1112 3 76 10 254 12 VDC 5 1 25 32%
MPD3404-6 (250) 1112 6 152 13 330 12 VDC 5 1 25 32%
MPD3404-12 (250) 1112 12 304 19 483 12 VDC 5 1 25 32%
MPD3404-18 (250) 1112 18 457 25 635 12 VDC 5 1 25 32%
HMPD3405-3 (250) 1112 3 76 10 254 12 VDC 28 2 50 12%
HMPD3405-6 (250) 1112 6 152 13 330 12 VDC 28 2 50 12%
HMPD3405-12 (250) 1112 12 304 19 483 12 VDC 28 2 50 12%
HMPD3405-18 (250) 1112 18 457 25 635 12 VDC 28 2 50 12%
* At Rated Load

Models

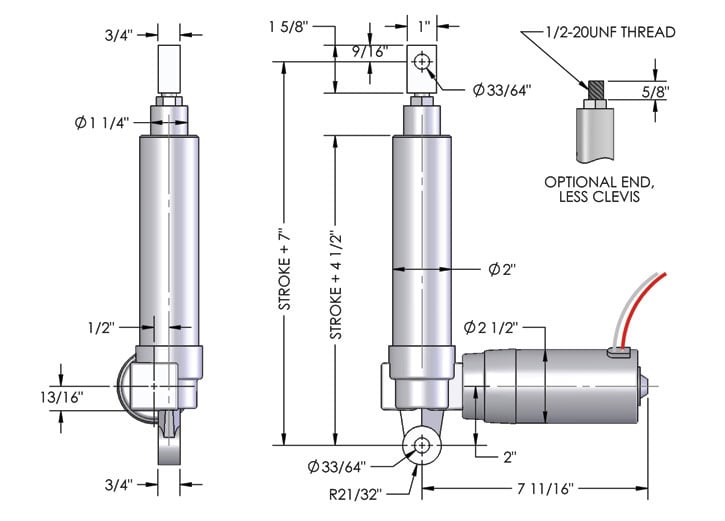

HMPD Series with Clutch Dimensions

HMPD Series with Clutch Dimensions

HMPD Series with Clutch Wiring Diagram

HMPD Series with Clutch Wiring Diagram
