HSPB Series Industrial Linear Actuator
HSPB Series Industrial Linear Actuator

HSPB Series 250 lbs

Linear Actuators

HSPB Series Industrial Linear Actuator
HSPB Series Industrial Linear Actuator

VOLTAGE: 115 or 220 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
SPEED: 0.6 to 1.4 in/s (15 to 35 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
TUBE RESTRAINING TORQUE: 30 in-lbf (3.4 Nm)

Free Application Analysis
Duff-Norton Linear Actuator Design Guide SPB Product Sheet HSPB OandM Manual HSPB Specs and Part Numbers HSPB Dimensional Drawing - 250 lb Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES and BENEFITS

HSPB Series Linear Actuators

VERSATILE DESIGN

Wide range of capacities and voltages for integration into a variety of applications

DURABLE

Heavy duty design for long life in tough environments

CORROSION RESISTANT

Aluminum housing and outer tube

PRECISE POSITIONING

Precise and repeatable positioning with internal, adjustable limit switches

OVERLOAD PROTECTION

Automatic reset thermal overload motor protection

MECHANICAL BRAKING SYSTEM

Reduces back driving and stopping distance

CUSTOM SOLUTIONS

Available with experienced Application Engineering Team

Options

OPTIONS:

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection
  • Load limiting friction disc clutch

Specifications

HSPB Series Product Specifications
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Duty Cycle*
# (lbs) N in mm in mm VAC Amp in/s mm/s %
SPB3405-3 (250) 1112 3 76 10 254 115 1.9 0.7 18 23%
SPB3405-6 (250) 1112 6 152 13 330 115 1.9 0.7 18 23%
SPB3405-12 (250) 1112 12 304 19 482 115 1.9 0.7 18 23%
SPB3405-18 (250) 1112 18 457 25 635 115 1.9 0.7 18 23%
SPB4405-3 (250) 1112 3 76 11.25 254 115 1 0.6 15 21%
SPB4405-6 (250) 1112 6 152 14.25 330 115 1 0.6 15 21%
SPB4405-12 (250) 1112 12 304 20.25 482 115 1 0.6 15 21%
SPB4405-18 (250) 1112 18 457 26.25 635 115 1 0.6 15 21%
HSPB3405-3 (250) 1112 3 76 11.25 254 115 5.1 1.4 36 11%
HSPB3405-6 (250) 1112 6 152 14.25 330 115 5.1 1.4 36 11%
HSPB3405-12 (250) 1112 12 304 20.25 482 115 5.1 1.4 36 11%
HSPB3405-18 (250) 1112 18 457 26.25 635 115 5.1 1.4 36 11%

Note: For all AC motors, a capacitor is required. The capacitor can be supplied the customer or Duff-Norton
* At Rated Load

Models

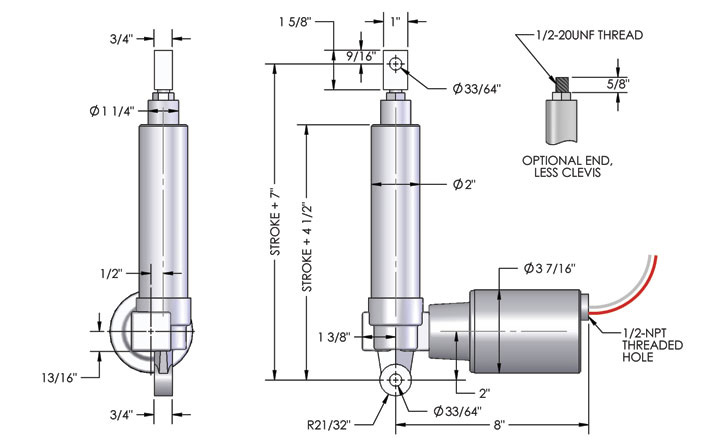

HSPB Series Dimensions

HSPB Series Dimensions

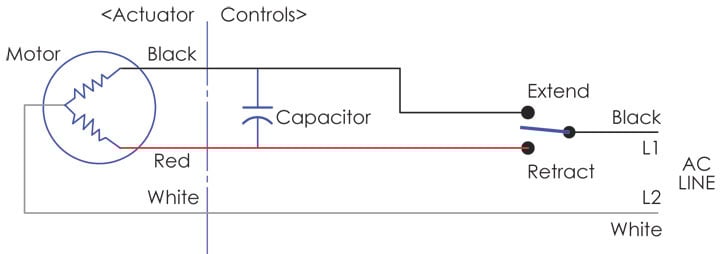

HSPB Series Wiring Diagram

HSPB Series Wiring Diagram
