LS Series - 450 to 675 lbs
Linear Actuators
VOLTAGE: 12 VDC or 115 VAC
STANDARD STROKES: 4 to 24 in. (101 to 609 mm)
SPEED: 0.15 to 0.26 in/s (3.8 to 6.6 mm/s)
Features and Benefits
FEATURES and BENEFITS
LS Series - 450 to 675 lb Linear Actuator
FULL CAPACITY
Operate at the full rated capacity in both push and pull applications
PRECISE POSITIONING
Adjustable limit Switch for safe and repeatable positioning
CORROSION RESISTANT
Corrosion resistant housing
NO BACK DRIVE
Self-locking ACME screw to prevent back driving
CUSTOM SOLUTIONS
Available with our experienced Application Engineering team
Specifications
LS Series 25, 26 & 28 Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Load | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | In | mm | In | mm | Vac | Amp | in/s | mm/s | % |
| LS25-1B5TN-04 | (450) 2000 | 4 | 101 | 11.4 | 290 | 115 |
1.4 |
0.26 | 6.6 | 17% |
| LS25-1B5TN-08 | (450) 2000 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.26 | 6.6 | 17% |
| LS25-1B5TN-12 | (450) 2000 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.26 | 6.6 | 17% |
| LS26-1B5TN-04 | (560) 2491 | 4 | 101 | 11.4 | 290 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS26-1B5TN-08 | (560) 2491 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS26-1B5TN-12 | (560) 2491 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS28-1B5TN-04 | (675) 3002 | 4 | 101 | 11.4 | 290 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| LS28-1B5TN-08 | (675) 3002 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| LS28-1B5TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| * At Rated Load | ||||||||||
LS Series 35 AC Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | in | mm | In | mm | VDC | in/s | mm/s | ||
| LS35-3B4TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 12 |
10 |
0.21 | 5.3 | 17% |
| LS35-3B4TN-24 | (675) 3002 | 24 | 609 | 31.4 | 797 | 12 |
10 |
0.21 | 5.3 | 17% |
| LS35-1B4TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 115 | 1.6 | 0.26 | 6.6 | 17% |
| LS35-1B4TN-24 | (675) 3002 | 24 | 609 | 31.4 | 797 | 115 | 1.6 | 0.26 | 6.6 | 17% |
| * At Rated Load | ||||||||||
LS Series 35 DC Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | lbs | In | mm | In | mm | VDC | Amp | in/s | mm/s | |
| LS35-3B4TN-12 | 675 | 12 | 304 | 19.4 | 493 | 12 VDC |
10 |
0.21 | 5.3 | 17% |
| LS35-3B4TN-24 | 675 | 24 | 609 | 31.4 | 797 | 12 VDC | 10 | 0.21 | 5.3 | 17% |
| LS35-1B4TN-12 | 675 | 12 | 304 | 19.4 | 493 | 115 VAC | 1.6 | 0.26 | 6.6 | 17% |
| LS35-1B4TN-24 | 675 | 24 | 609 | 31.4 | 797 | 115 VAC | 1.6 | 0.26 | 6.6 | 17% |
| * At Rated Load | ||||||||||
LS Series 48 Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VAC | Amp | in/s | mm/s | % |
| LS48-S001 | (660) 2935 | 24 | 609 | 38.8 | 984 | 115 |
1.4 |
0.15 | 3.8 | 17% |
| * At Rated Load | ||||||||||
Models
LS Series Models

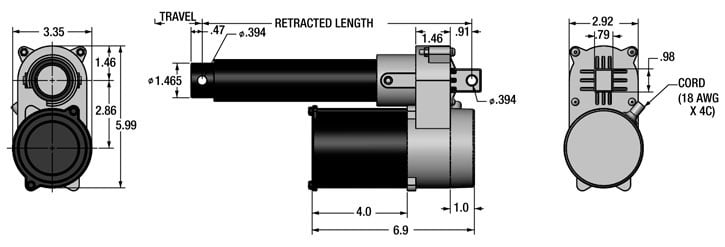

LS Series 25, 26 & 28 Dimensions |
|---|

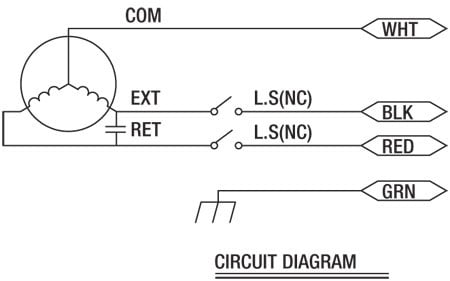

LS Series 25, 26 & 28 Wiring Diagram |
|---|

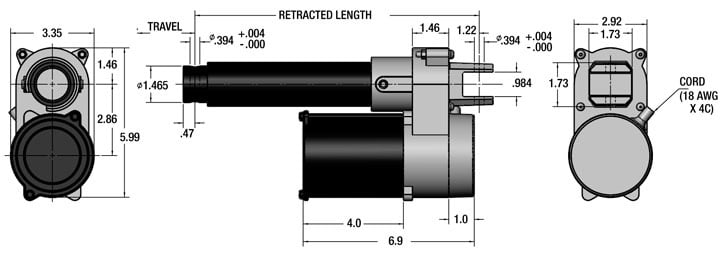

LS Series 35 AC Dimensions |
|---|
LS Series 35 AC Wiring Diagram |
|---|

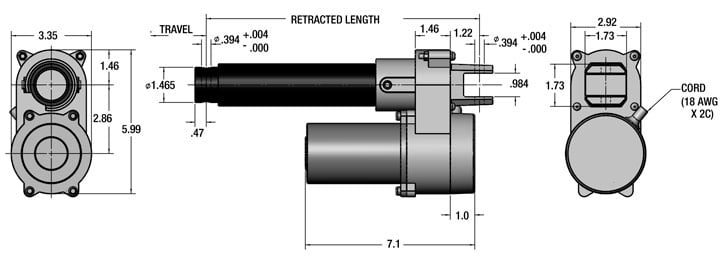

LS Series 35 DC Dimensions |
|---|

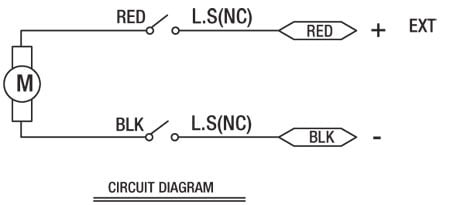

LS Series 35 DC Wiring Diagram |
|---|

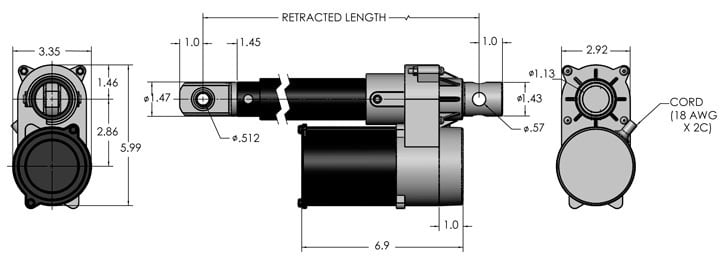

LS Series 48 Dimensions |
|---|

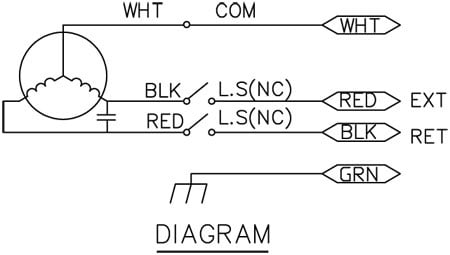

LS Series 48 Wiring Diagram |
|---|
