VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 4 to 28 in (102 to 457 mm)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
TUBE RESTRAINING TORQUE: 60 in-lbf (6.7 Nm)
SPB Series 500 lb. Product Specifications |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Clutch | High Speed Motor | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | vac | amp | in/s | mm/s | Yes/No | Yes/No | % |
| SPB6405-3 | (500) 2224 | 3 | 76 | 10 | 254 | 115 | 2.1 | 0.58 | 15 | Yes | No | 23% |
| SPB6405-6 | (500) 2224 | 6 | 152.4 | 13 | 330 | 115 | 2.1 | 0.58 | 15 | Yes | No | 23% |
| SPB6405-12 | (500) 2224 | 12 | 304.8 | 19 | 483 | 115 | 2.1 | 0.58 | 15 | Yes | No | 23% |
| SPB6405-18 | (500) 2224 | 18 | 457.2 | 25 | 635 | 115 | 2.1 | 0.58 | 15 | Yes | No | 23% |
| SPB7405-3 | (500) 2224 | 3 | 76 | 10 | 254 | 115 | 1 | 0.51 | 13 | Yes | No | 24% |
| SPB7405-6 | (500) 2224 | 6 | 152.4 | 13 | 330 | 115 | 1 | 0.51 | 13 | Yes | No | 24% |
| SPB7405-12 | (500) 2224 | 12 | 304.8 | 19 | 483 | 115 | 1 | 0.51 | 13 | Yes | No | 24% |
| SPB7405-18 | (500) 2224 | 18 | 457.2 | 25 | 635 | 115 | 1 | 0.51 | 13 | Yes | No | 24% |
| HSPB6405-3 | (500) 2224 | 3 | 76 | 10 | 254 | 115 | 5.5 | 1.3 | 33 | Yes | Yes | 11% |
| HSPB6405-6 | (500) 2224 | 6 | 152.4 | 13 | 330 | 115 | 5.5 | 1.3 | 33 | Yes | Yes | 11% |
| HSPB6405-12 | (500) 2224 | 12 | 304.8 | 19 | 483 | 115 | 5.5 | 1.3 | 33 | Yes | Yes | 11% |
| HSPB6405-18 | (500) 2224 | 18 | 457.2 | 25 | 635 | 115 | 5.5 | 1.3 | 33 | Yes | Yes | 11% |
| * At Rated Load | ||||||||||||

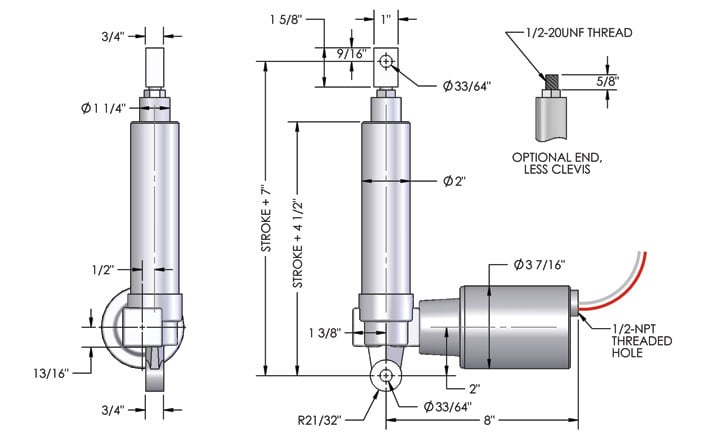

SPB Series 500 lb. Dimensions |
|---|

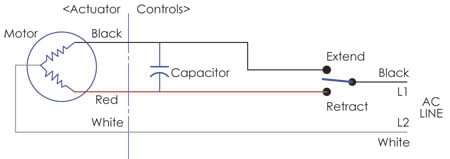

SPB Series 500 lb. Wiring Diagram |
|---|
Load Capacity:
500 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
4, 8, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
3.9, 5.9, 11.8, 17.7, 23.6 in.
