XLTX™ Transmitter
Bellybox Transmitters
Our sophisticated XLTX bellybox incorporates the latest wireless control technology in a lightweight, comfortably contoured, yet durable case. It’s available with several options to meet the needs of a variety of applications and industries; including Crane and Hoist, Fluid Power, and Surface Mining applications.
Features and Benefits
Features & Benefits
COMFORTABLE & PRACTICAL DESIGN
Ergonomically designed contoured case is more comfortable for the user. One of the lightest bellybox transmitters available today—50% lighter than other bellybox transmitters. Easy to use, angled lever or joystick controls enhance operator comfort. Choose up to 7 levers or 3 joysticks; up to 12 toggles; mushroom E-stop.
DURABLE & RELIABLE
Rugged, super-tough nylon housing is made to withstand shock. Rated NEMA 4 (IP66), sealed to withstand harsh, industrial environments. Synthesized frequency generation enhances reliability. Access code system provides peace-of-mind, as the signal only operates the intended equipment. Designed to minimize power consumption, providing one of the longest life batteries in the industry today — rechargeable NiMH battery pack optional.
VERSATILE & FEATURE-RICH OPTIONS
Configure the MLTX2 on a Windows PC with the optional Radio Control Programmer (RCP) via USB or the USB/IR adapter. Easily upload new programming in the field with USB connection. Optional graphic display keeps the operator informed of system status at all times, and makes configuring access codes, channels, and other system settings simple. Two-way feedback available, showing machine related parameters, engine diagnostic information, Received Signal Strength Indication (RSSI), and much more. Several frequency options including 400MHz, 900MHz, and 2.4GHz. Synthesized RF technology available in licensed and unlicensed frequencies. Available with ATEX and IECEx approvals for Zone 0, Zone 1, and Zone 2 applications. ATEX Approval: II 1 G Ex ia IIC T3/T4 Ga. IECEx Approval: Ex ia IIC T3/T4 Ga.
Options
OPTIONS
Magnetek provides innovative, cost-effective, custom-engineered radio remote controls complete with crane interface controls. These radio controls are designed to your specifications, reducing internal engineering and manufacturing costs, improving time to market, and enhancing equipment performance. We offer complete plug-and-play remote control packages designed specifically for your overhead material handling system, manufactured and tested on our panel assembly line.
Packaged System Options Include:
- VFDs, PLCs, and contactor controls
- l/O modules supporting various types of machine sensors and valves
- Graphic display modules
- Custom programming as the application requires
- NEMA 4 and stainless steel enclosures
- Pre-wired cables with valve connectors of choice
- Collision avoidance
Pre-Engineered Systems
Our standard Pre-engineered XLTX system is packaged with our Flex M Receiver for flexibility not found in most off-the-shelf systems.
Flex M Receiver Features
- Full modular design
- Offers two-way feedback
- Part 15 900MHz
- Synthesized RF, 32 channels
- Panel mounted
Other configurations and RF frequencies are available for custom engineered systems.
We can build your system to your specifications—with our Flex M or 18K receivers, it's completely customizable.
IDEAL FOR THE FOLLOWING APPLICATIONS:
Engineered-to-Order Application Questionnaires
Work directly with our Engineered-to-Order team on a radio application by filling out this questionnaire.
Get started on an Engineered-to-Order mobile hydraulic application by filling out this questionnaire today.
Antenna Installation and Troubleshooting Guide
Download the free guide from our tranining team to ensure proper antenna installation. And keep the guide handy for useful troubleshooting steps if needed.
Magnetek Support Services
Over 150 years of combined experience means Magnetek has the expertise to skillfully serve your application needs before, during, and after we complete a project. With products designed to maximize the performance of your material handling system, start-up and field assistance, programs designed to train employees on optimal product usage, and quick, value-driven product repair and recertification, Magnetek is able to assist you with the highest level of service.
IMPULSE Series 5 CAD Drawings

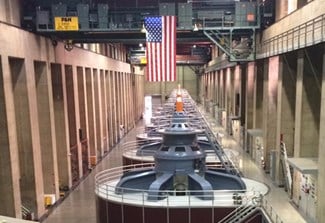

Hoover Dam Modernization Project
