TAC Series Industrial Linear Actuator
TAC Series Industrial Linear Actuator

TAC Series - 500 lbs

Linear Actuators

TAC Series Industrial Linear Actuator
TAC Series Industrial Linear Actuator

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 4 to 18 in (76 to 457 mm)
SPEED: 0.45 in/s (11 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standardTUBE RESTRAINING TORQUE: 40 in-lbf (4.5 Nm)

Buy Now Free Application Analysis
Duff-Norton Linear Actuator Design Guide TAC Product Sheet TAC Specs and Part Numbers TAC Dimensional Drawing TAC Series OandM Manual Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES & BENEFITS:

  • Heavy duty design for long life in tough applications
  • Aluminum housing and outer tube
  • Stainless steel translating tube
  • Double clevis mounting
  • Load limiting ball detent clutch
  • Automatic reset thermal overload motor protection

Options

OPTIONS:

  • Bellows boot

Specifications

TAC Series 500 lb. Product Specifications
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* High Speed Motor Duty Cycle*
# (lbs) N in mm in mm VDC Amp in/s mm/s Yes/No %
TAC05-1D20-4 (500) 2224 4 102 12 305 12 10 0.45 11 Yes 40%
TAC05-1D20-8 (500) 2224 8 203 16 406 12 10 0.45 11 Yes 40%
TAC05-1D20-12 (500) 2224 12 305 20 508 12 10 0.45 11 Yes 40%
TAC05-1D20-18 (500) 2224 18 457 26 660 12 10 0.45 11 Yes 40%
TAC05-2D20-4 (500) 2224 4 102 12 305 24 5 0.45 11 Yes 40%
TAC05-2D20-8 (500) 2224 8 203 16 406 24 5 0.45 11 Yes 40%
TAC05-2D20-12 (500) 2224 12 305 20 508 24 5 0.45 11 Yes 40%
TAC05-2D20-18 (500) 2224 18 457 26 660 24 5 0.45 11 Yes 40%
*At Rated Load

Models

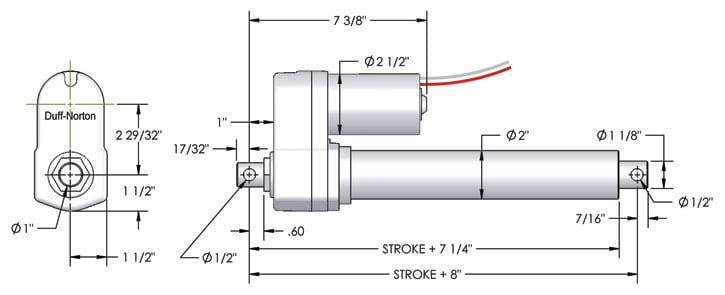

TAC Series 500 lb.Dimensions

TAC Series Dimensions

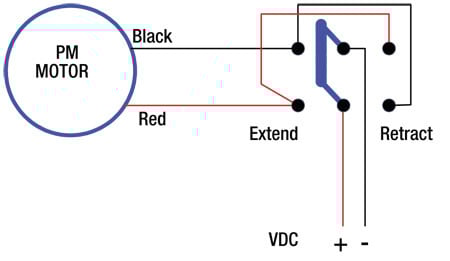

TAC Series 500 lb. Wiring Diagram

TAC Series Wiring Diagram
