Steel Track Trolley

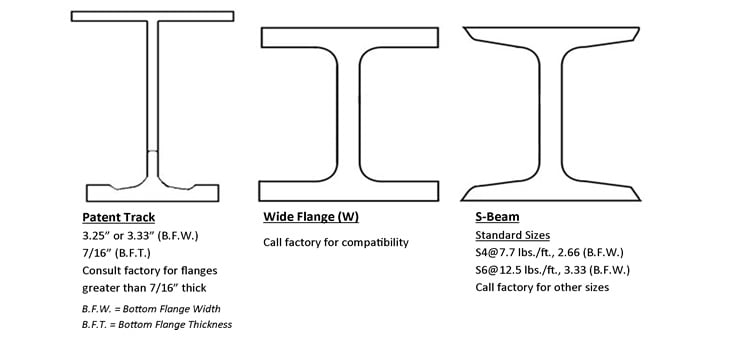

Types of Beams that trolleys can run on:

Type of Trolley	Series	Max. Capacity
	MBC Series	500 lbs - 1,500 lbs
	AC Series (Articulating)	500 lbs - 1,500 lbs
	SAC Series (Self-Aligning)	500 lbs - 1,500 lbs
	BT Series	2,000 lbs - 4,000 lbs
	UT Series	500 lbs - 1,000 lbs
	TSE Series	2,500 lbs
	MT Series	250 lbs
	FT Series	150 lbs

Steel Rail Accessories

• Counter Thrust Roller Assembly
• Low Headroom End Trucks
• Universal Swivel
• End Stops

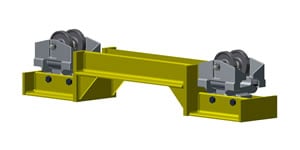

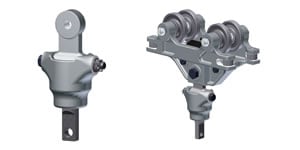

MBC - Series

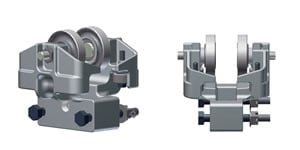

AC Series

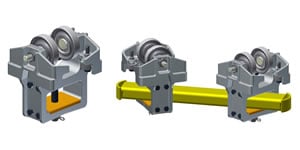

Two Wheel Articulating Trolley | 500lb cap.

Part # | Description

• 10020 AC-500-2-325 - 3.25"/3.33" flange flat rail
• 10021 AC-500-2-333 - 3.33" flange/6" S-Beam
• 10030 AC-500-2-4 - 2.66" flange/4" S-Beam

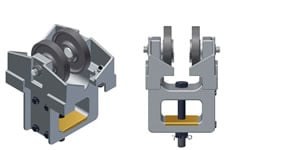

Two Wheel Articulating Trolley | 1,00/1,500lb cap.

Part # | Description

• 10010 AC-1027-325 | 3.25"/3.33" flange flat rail | 1,000lb
• 10011 AC-1027-333 | 3.33" flange/6" S-Beam | 1,000lb
• 10012 AC-1027-325D | 3.25"/3.33" flange flat rail | 1,500lb
• 10013 AC-1027-333D | 3.33" flange/6" S-Beam | 1,500lb

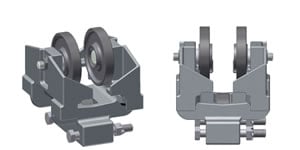

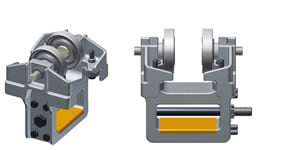

SAC Series

Two Wheel Self Aligning Trolley | 500lb. cap

Part # | Description

• 10230 SAC-500-2 - 3.25"/3.33" flange flat rail
• 10231 SAC-500-2-4 - 3.33" flange/6" S-Beam
• 10240 SAC-500-2-4 - 2.66" flange/4" S-Beam

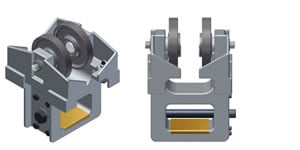

Self Aligning 2 Wheel Carrier Head

Part # | Description

• 10220 SAC-1020-325 | 3.25"/3.33" flange flat rail | 1,000lb
• 10221 SAC-1020-333 | 3.33" flange/6" S-Beam | 1,000lb
• 10222 SAC-1020-325D | 3.25"/3.33" flange flat rail | 1,500lb
• 10223 SAC-1020-333D | 3.33" flange/6" S-Beam | 1,500lb

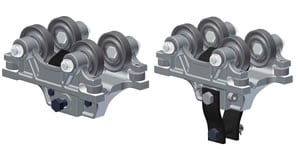

BT Series

Four Wheel Safety Trolleys | 2,000lb cap.

Part # | Description

• 10040 BT-266 | 2.66" flange/4" S-Beam
• 10041 BT-266-DHS* | 2.66" flange/4" S-Beam
• 10050 BT-325-DHS* | 3.25"/3.33" flange flat rail
• 10051 BT-325 | 3.25"/3.33" flange flat rail
• 10052 BT-333 | 3.33" flange/6" S-Beam
• 10053 BT-333-DHS* | 3.33" flange/6" S-Beam

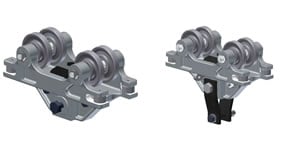

Four Wheel Safety Trolleys | 4,000lb cap.

Part # | Description

• 10060  BT-325-10 | 3.25"/3.33" flange flat rail
• 10061 BT-325-10-DHS | 3.25"/3.33" flange flat rail
• 10062 BT-333-10 | 3.33" flange/6" S-Beam
• 10063 BT-333-10-DHS | 3.33" flange/6" S-Beam

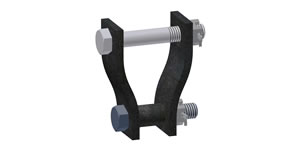

*DHS - Dual Hanging Strap

UT Series

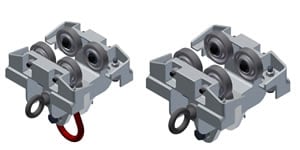

Four Wheel Universal Trolley | 500lb cap.

Part # | Description

• 10350 UT-500-LL-325 | 3.25"/3.33" flange flat rail
• 10351 UT-500-LL-333 | 3.33" flange/6" S-Beam
• 10352 UT-500-LL-266 | 2.66" flange/4" S-Beam
• 10353 UT-500-S-325 | 3.25"/3.33" flange flat rail
• 10354 UT-500-S-333 | 3.33" flange/6" S-Beam
• 10355 UT-500-S-266 | 2.66" flange/4" S-Beam

LL - with load link
S - with spool and no load link

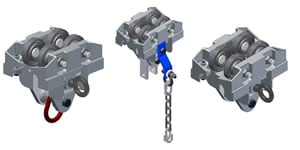

Four Wheel Universal Trolley | 1,000lb cap.

Part # | Description

• 10340 UT-1000-LL-325 | 3.25"/3.33" flange flat rail
• 10341 UT-1000-LL-333 | 3.33" flange/6" S-Beam
• 10342 UT-1000-LL-266 | 2.66" flange/4" S-Beam
• 10343 UT-100-S-325 | 3.25"/3.33" flange flat rail
• 10344 UT-1000-S-333 | 3.33" flange/6" S-Beam
• 10345 UT-1000-S-266 | 2.66" flange/4" S-Beam
• 10346 UT-1000-YBC-325 | 3.25"/3.33" flange flat rail
• 10347 UT-1000-YBC-333 | 3.33" flange/6" S-Beam
• 10348 UT-1000-YBC-266 | 2.66" flange/4" S-Beam

LL - non-insulated with forged through eyebolt, spool and load link
S - non-insulated with spool

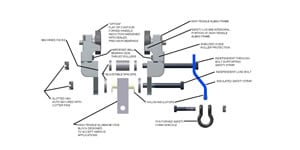

YBC - dielectrically insulated yoke block, safety strap and shackle

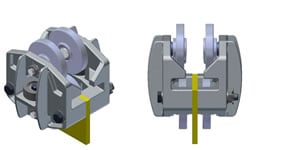

TSE Series

Four Wheel Tandem Trolley | 2,500lb cap.

Part # | Description

• 10310 TSE-1017-325 | 3.25"/3.33" flange flat rail
• 10315 TSE-1017-333 | 3.33" flange/6" S-Beam

MT Series

Four Wheel Trolley | 250lb cap.

Part # | Description

• 10210 MT-250-B | 3.25"/3.33" flange flat rail
• 10211 MT-250-B | 3.33" flange/6" S-Beam
• 10212 MT-250-B | 2.66" flange/4" S-Beam

FT Series

Two Wheel Festoon Trolley* | 150lb cap.

Part # | Description

• 10080 FT-233 | 2.33" flange/3" S-Beam
• 10100 FT-266 | 2.66" flange/4" S-Beam
• 10120 FT-325 | 3.25" flat flange rail
• 10135 FT-333 | 3.33" flange/6" S-Beam

*bumper versions available
